Operate Power Beyond with SCV

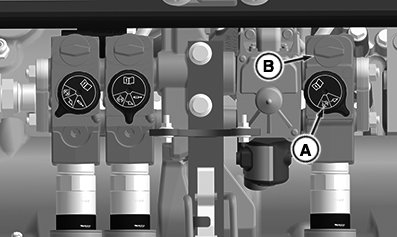

RXA0154351-UN-14OCT16

A - SCV Motor Detent

B - Adjustable Flow Control Valve

IMPORTANT: Power beyond connections must be used when operating any external hydraulic orbital motor with this machine. Failure to comply with power beyond connections overheats and possibly damages the hydraulic system.

NOTE: Oil can be supplied to power beyond equipment using an SCV with detents or by using power beyond couplers.

1. Connect power beyond hose to SCV extend coupler.

2. Set rear SCV detent (A) to continuous.

3. Start engine.

4. Move SCV lever into extend.

5. Oil is now supplied to power beyond device.

6. To stop, de-activate power beyond device, return SCV lever to neutral.

7. Shut engine Off and disconnect hoses.
