Operate Loader with Rear SCV

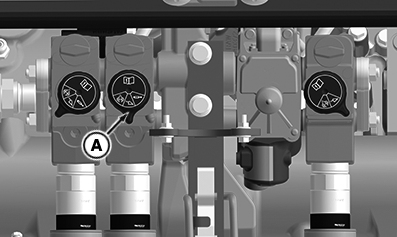

RXA0154352-UN-14OCT16

A - Loader Setting

CAUTION: Avoid injury or death caused by falling loads. When using selective control valve (SCV) to operate loader, detent must be set in Loader Setting (A), for loader movement to stop when SCV lever is released. Moving SCV lever to any other position would cause the loader to perform unexpectedly and potentially causing injury.

When using loader with rear SCVs, ALWAYS put the SCV detent selector in loader setting (A) to prevent unexpected movement.
