Adjust Flow Control

CAUTION: Excessive operating speed will cause injury or machine damage.

Decrease flow rate if hydraulic oil overheats, remote cylinder moves too quickly, or if hydraulic motor turns too fast.

NOTE: For electrohydraulic valves, flow control is adjusted through the “SCV and Loader Menu” in this section.

RXA0154095-UN-13OCT16

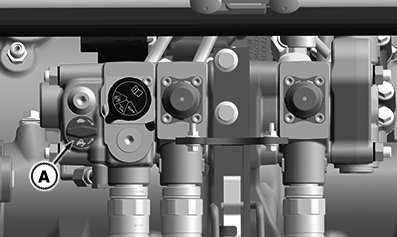

Rear SCV Flow Control

RXA0154353-UN-14OCT16

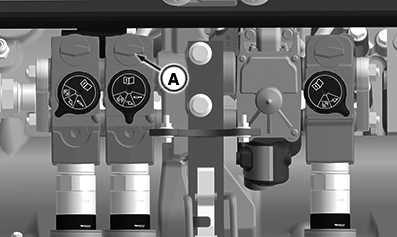

Individual Valve with Flow Control

RXA0154100-UN-13OCT16

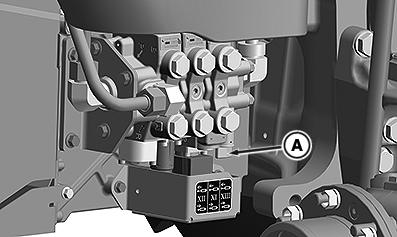

Mid SCV Flow Control

A - Flow Control Dial (Open Center Only)

• Increase flow - rotate left (counterclockwise).
• Decrease flow - rotate right (clockwise).

NOTE: Rear SCV: If detent kicks out before end of cycle, use SCV I and adjust flow control.
