Power Beyond

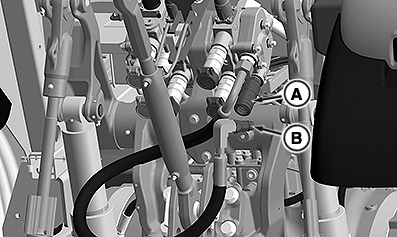

RXA0154089-UN-13OCT16

Open Center Power Beyond

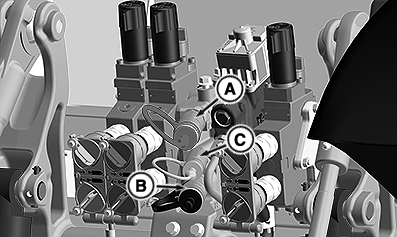

RXA0154086-UN-13OCT16

Closed Center Power Beyond

A - Supply Coupler

B - Return Coupler

C - Load Sense Signal Coupler

Use power beyond for applications where continuous high volume hydraulic oil flow is needed.

Open Center Connection:

1. Remove return coupler (B) from the supply coupler (A).

2. Attach return hose to implement return port.

3. Attach implement supply pressure hose to supply coupler.

4. When not in use, plug hose end into coupler for storage.

Closed Center Connection:

1. Remove dust plugs from couplers (A, B, and C).

2. Connect implement hoses to couplers as required.

   NOTE: A load sense signal line is required for closed center power beyond to operate correctly.
