Case Drain

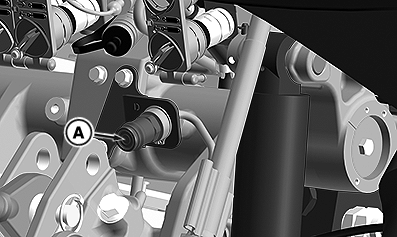

RXA0154087-UN-13OCT16

A - Flat-Faced Drain Connector

If implement motor is equipped with a case drain hose, attach it to the flat-faced drain connector (A). Make sure that the hose coupler and drain connector are clean before attaching. Install protective dust cap when connector is not in use.

Parts for this attachment are available from your John Deere dealer.
