Fast Return to Sump

IMPORTANT: Use fast return-to-sump connection only for intermittent high flow applications; DO NOT use otherwise.

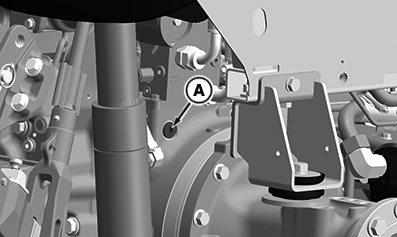

RXA0154088-UN-13OCT16

A - Plug

Some implements, such as a post pounder, require use of a high flow or fast return-to-sump connection.

If a high flow return connection is needed, remove plug (A) from the right rear upper corner of the transmission housing and install connector.

NOTE: Connector is available from your John Deere dealer.
