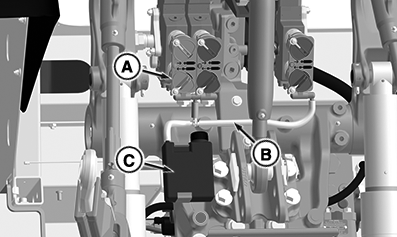

Rear SCV Oil Collection

RXA0154346-UN-14OCT16

A - SCV Coupler

B - Hose

C - Oil Collection Tank

Oil leaks when uncoupling rear SCV hoses. Collars are installed onto couplers (A), which capture oil. The hoses (B) transfer oil from couplers to the removable collection bottle (C).
