Mid SCV Couplers

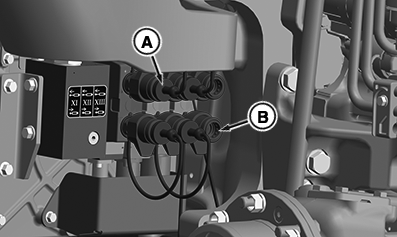

RXA0154094-UN-13OCT16

A - Dust Plugs

B - Couplers

Mid SCVs are equipped with plugs, loader hoses, or couplers. To use couplers, remove dust plugs (A) and connect hoses to couplers (B). Extend couplers are on top and retract are on the bottom.
