Replace LED Headlight

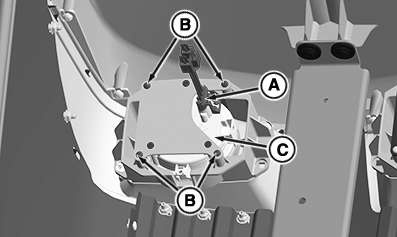

RXA0154413
RXA0154413-UN-01NOV16

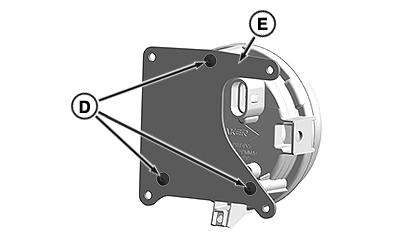

RXA0154414
RXA0154414-UN-01NOV16

A - Harness Connector

B - Light Retaining Screws

C - LED Headlight Bulb

D - Backing Plate Screw

E - Backing Plate

  1. Raise hood.

  2. Disconnect wiring harness connector (A).

  3. Remove light retaining screws (B).

  4. Remove LED headlight bulb (C).

  5. Remove screws (D) from backing plate (E).

  6. Replace headlight bulb with a new part and reassemble in reverse order.

DP51502,0002786-19-20161107
