Replace Tail / Turn / Brake Light Bulb

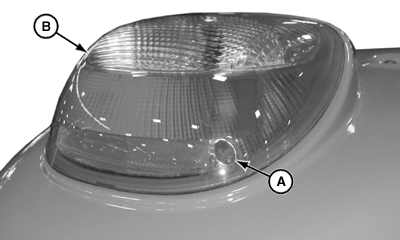

LV14850
LV14850-UN-04OCT11

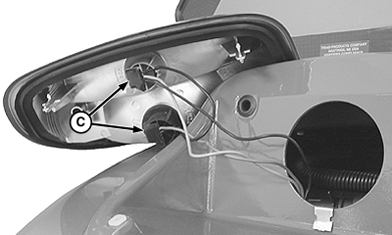

LV12532
LV12532-UN-13APR05

A - Screw (2 used)

B - Housing

C - Socket (2 used)

  1. Remove screws (A).

  2. Pull housing (B) away from fender.

  3. Rotate socket (C) and remove from housing.

  4. Pull bulb to remove from socket.

  5. Install new bulb in socket.

  6. Reinstall in reverse order.

DP51502,0002789-19-20161115
