Replace Beacon Light Bulb


Remove Assembly

LV12523
LV12523-UN-13APR05

LV12524
LV12524-UN-13APR05

A - Wing Nut

B - Rubber Cap

CAUTION: See “Handle Halogen Light Bulbs Safely” in this section.

  1. Loosen wing nut (A) and remove beacon light assembly.

  2. Install rubber cap (B).


Change Bulb

LV9695
LV9695-UN-19AUG04

LV9696
LV9696-UN-19AUG04

LV9697
LV9697-UN-19AUG04

A - Tab

B - Lens

C - Tab

D - Retaining Spring

E - Bulb

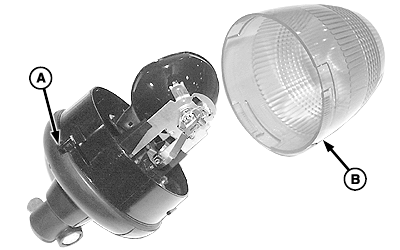

  1. Depress tab (A) and rotate the lens (B) counterclockwise to remove.

  2. Pull tab (C) away from bulb.

  3. Unlatch retaining spring (D) and remove the light bulb (E).

  4. Install new bulb in reverse order of removal.

DP51502,000278B-19-20161107
