Replace Map Light Bulb

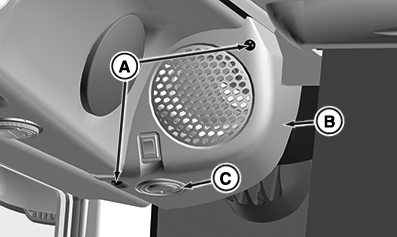

RXA0154420-UN-07NOV16

A - Screws

B - Cover

C - Map Light

1. Remove screws (A) from cover (B).

2. Lower cover to access map light (C) harness connector.

3. Pull bulb from back side of the light housing to remove.

4. Install new bulb in reverse order of removal.
