Change Front PTO Oil

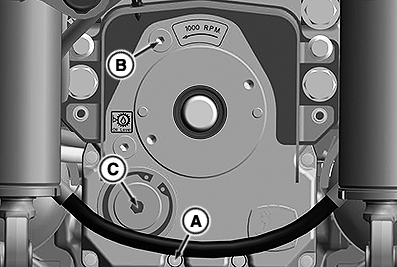

RXA0155640-UN-10NOV16

A - Drain Plug

B - Filler Plug

C - Cover

SERVICE INTERVAL
	Every 1200 Hour

IMPORTANT: J20D is the only acceptable transmission/hydraulic oil for use in the front PTO.

1. Remove filler plug (B).
2. Remove drain plug (A).
3. Drain oil into a suitable container.
4. Remove snap ring and cover (C).
5. Remove and clean oil screen.
6. Check O-ring, install oil screen, close cover, and install snap ring.
7. Install drain plug (A), torque to 42 N·m (31 lb·ft).
8. Add J20D transmission/hydraulic oil to the PTO housing. See “Fuel, Lubricants, and Coolants” section.

   Item	Measurement	Specification
   Front PTO	Capacity	3.1 L (0.8 gal)

9. Install filler plug (B), torque to 42 N·m (31 lb·ft).
10. Check fluid level after changing oil and after initial run.
