Set Tread—Multi-Position MFWD Wheels

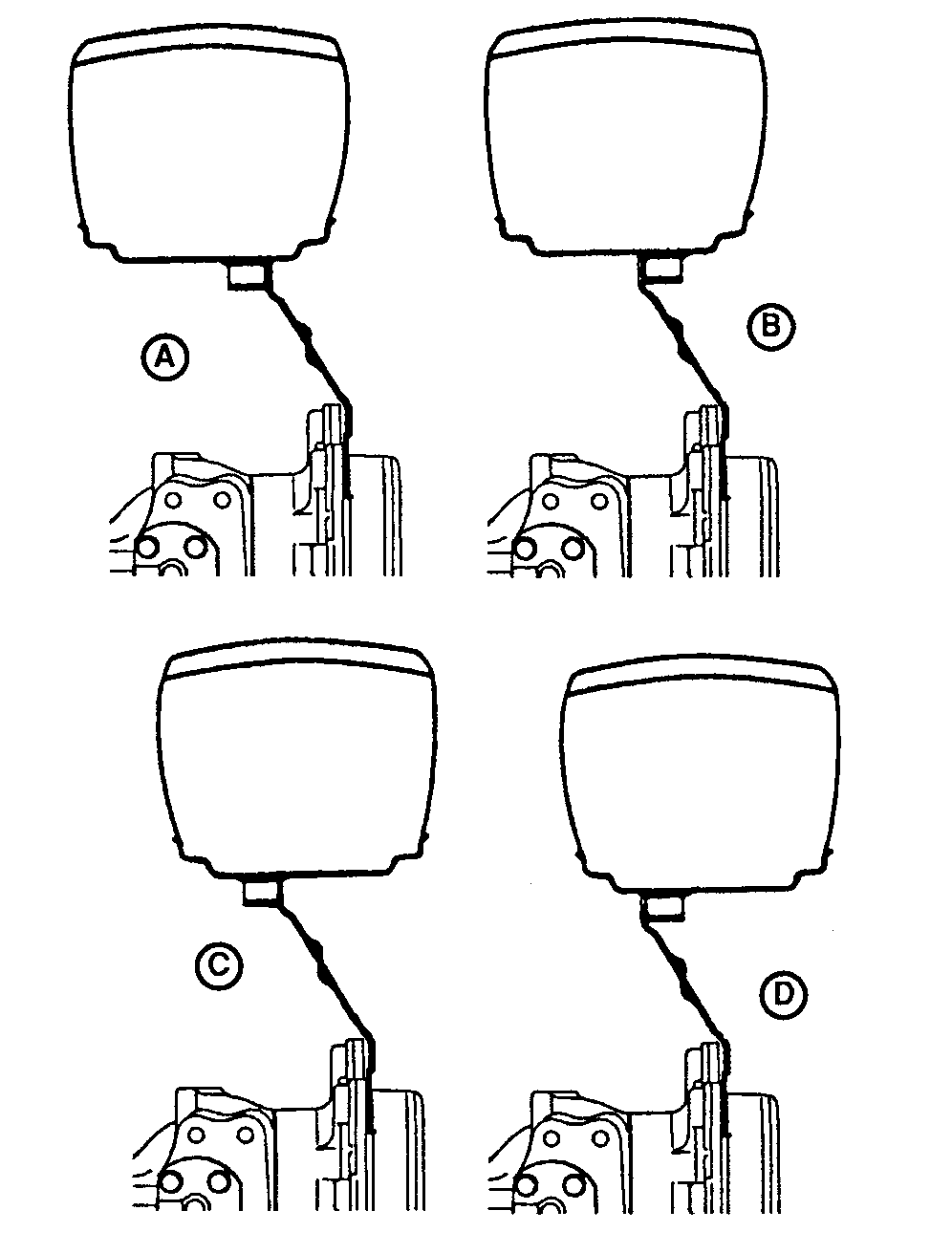

LV601-UN-22APR94

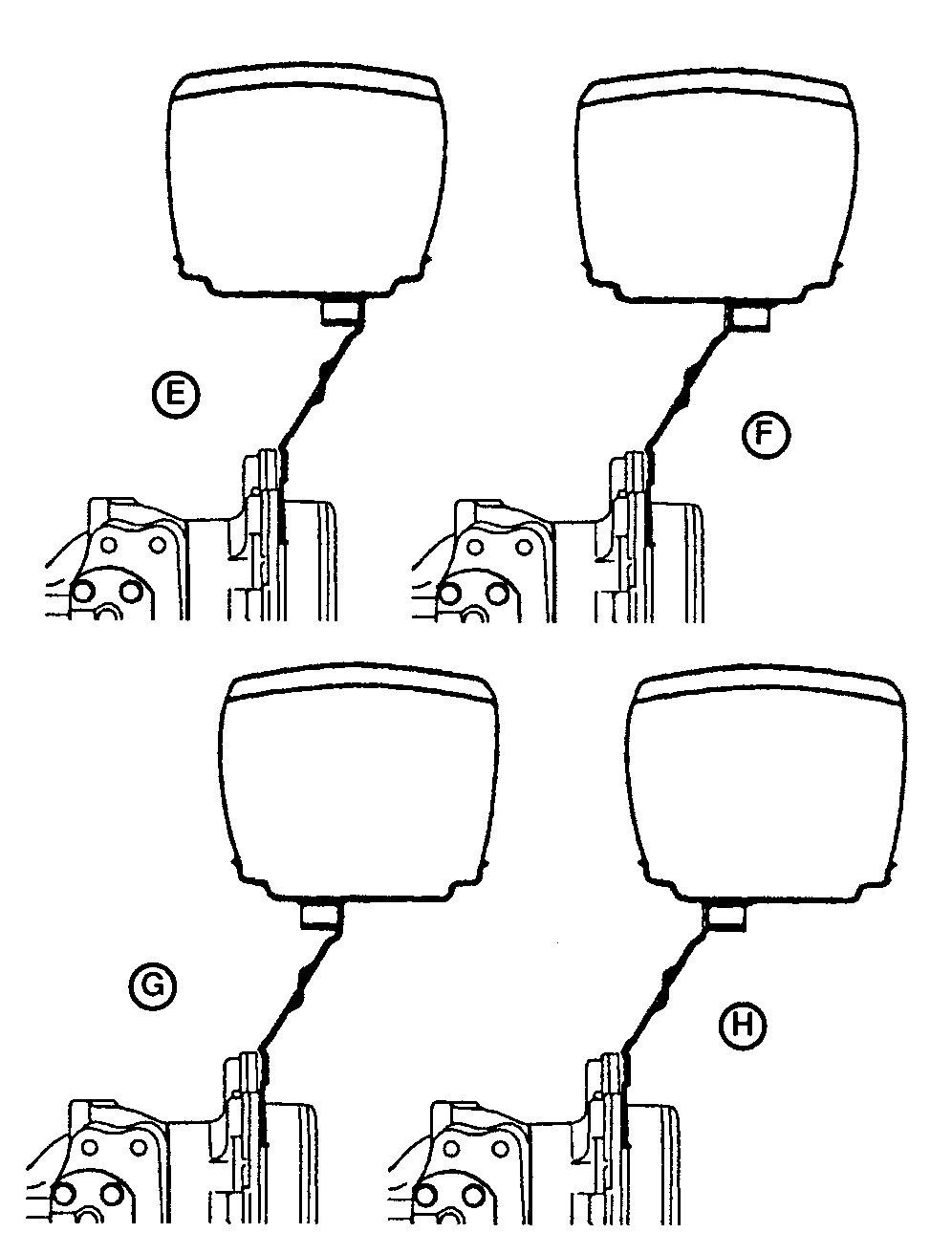

LV602-UN-22APR94
- Wheel tread with multi-position wheels can be adjusted by repositioning or exchanging the rims or by reversing the wheel disks.
- Wheel tread can also be adjusted by exchanging the complete wheel to the opposite side of the machine. This permits the change from disk-dished-in to disk-dished-out operations without disassembling the wheel.
- When changing wheels from one side to the other, the arrow on the side wall of tire points in the direction of forward rotation.
- The wheel tread can be adjusted by exchanging the wheels from side to side and by using spacers.
- Tread settings are measured at the middle of the tires at axle height.
|
MULTI-POSITION MFWD WHEELS—TREAD WIDTH (Centerline-to-Centerline) |
||||||||
|---|---|---|---|---|---|---|---|---|
|
No Spacer |
||||||||
|
Tire |
A |
B |
C |
D |
E |
F |
G |
H |
|
9.5R28 (Two Position Rim) |
1146 mm (45.1 in) |
Not applicable |
Not applicable |
Not applicable |
Not applicable |
Not applicable |
Not applicable |
Not applicable |
|
9.5R28 (Two Position Rim) |
2302 mm (90.6 in) |
Not applicable |
Not applicable |
Not applicable |
Not applicable |
Not applicable |
Not applicable |
Not applicable |
|
12.5/80-18 |
1576.5 mm (62 in) |
1722 mm (67.7) |
Not applicable |
Not applicable |
Not applicable |
Not applicable |
Not applicable |
Not applicable |
|
13.6R24 (340/85R24) |
Interference |
1381 mm (54.3 in) |
1485 mm (58.4 in) |
1581 mm (62.2 in) |
1685 mm (66.3 in) |
1781 mm (70.1 in) |
1885 mm (74.1 in) |
1981 mm (77.9 in) |
|
11.2R24 (280/85R24) |
1300 mm (51.1 in) |
1398 mm (55 in) |
1500 mm (59 in) |
1596 mm (62.8 in) |
1700 mm (66.9 in) |
1798 mm (70.7 in) |
1900 mm (74.8 in) |
1998 mm (78.6 in) |
|
230/95R32 |
1277 mm (50.2 in) |
1377 mm (54.2 in) |
1481 mm (58.3 in) |
1579 mm (62.1 in) |
1679 mm (66.1 in) |
1777 mm (69.9 in) |
1871 mm (73.6 in) |
1970 mm (77.5 in) |
|
440/65R24 |
Interference |
Interference |
1508 mm (59.3 in) |
1604 mm (63.1 in) |
1692 mm (66.6 in) |
1788 mm (70.3 in) |
1908 mm (75.1 in) |
2004 mm (78.8 in) |
|
480/65R24 |
Interference |
Interference |
1504 mm (59.2 in) |
1600 mm (62.9 in) |
1700 mm (66.9 in) |
1796 mm (70.7 in) |
1904 mm (74.9 in) |
2000 mm (78.7 in) |
|
380/70R20 R1 |
1342 mm (52.8 in) |
1452 mm (57.1 in) |
1544 mm (60.7 in) |
1626 mm (64.0 in) |
1642 mm (64.6 in) |
1752 mm (68.9 in) |
1844 mm (72.5 in) |
1954 mm (76.9 in) |
|
12.4R24 (320/85R24) R1 |
Interference |
1398 mm (55 in) |
1500 mm (59 in) |
1596 mm (62.8 in) |
1700 mm (66.6 in) |
1798 mm (70.7 in) |
1900 mm (74.8 in) |
1998 mm (78.6 in) |
|
380/85R24 (14.9R24) |
Interference |
1396 mm (54.9 in) |
1504 mm (59.2 in) |
1600 mm (62.9 in) |
1700 mm (66.9 in) |
1796 mm (70.7 in) |
1904 mm (74.9 in) |
2000 mm (78.7 in) |
|
13.6R24 (380/70R24) |
Interference |
1396 mm (54.9 in) |
1500 mm (59 in) |
1596 mm (62.8 in) |
1700 mm (66.9 in) |
1796 mm (70.7 in) |
1900 mm (74.8 in) |
1996 mm (78.5 in) |
|
340/85R28 (13.6R28) |
Interference |
1396 mm (54.9 in) |
1504 mm (59.2 in) |
1600 mm (62.9 in) |
1700 mm (66.9 in) |
1796 mm (70.7 in) |
1904 mm (74.9 in) |
2000 mm (78.7 in) |
|
44x18-20 |
1576 mm (62.0 in) |
1729 mm (68 in) |
Not applicable |
Not applicable |
Not applicable |
Not applicable |
Not applicable |
Not applicable |
|
340/85R24 (13.6R24) |
Interference |
1396 mm (54.9 in) |
1500 mm (59 in) |
1596 mm (62.8 in) |
1700 mm (66.9 in) |
1796 mm (70.7 in) |
1900 mm (74.8 in) |
1996 mm (77.5 in) |
|
440/65R24 |
Interference |
Interference |
1508 mm (59.3 in) |
1604 mm (63.1 in) |
1692 mm (66.6 in) |
1788 mm (70.3 in) |
1908 mm (75.1 in) |
2004 mm (78.8 in) |
|
280/85R28 (11.2R28) |
1334 mm (52.5 in) |
1430 mm (56.2 in) |
1466 mm (57.7 in) |
1562 mm (61.4 in) |
1734 mm (68.2 in) |
1830 mm (72 in) |
1866 mm (73.4 in) |
1962 mm (77.2 in) |
|
