Set Radio Clock

RXA0100807-UN-06MAR09

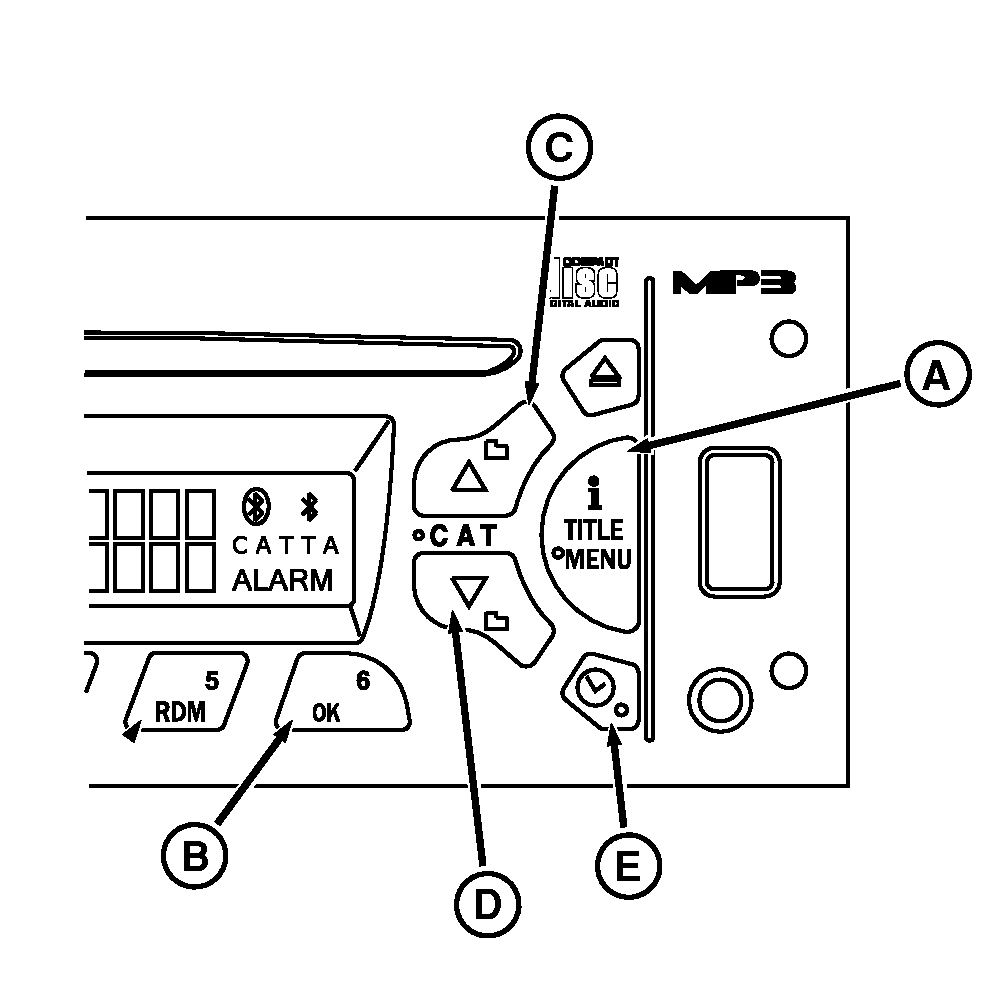

Set Clock

A - iTitle/Menu Button

B - Ok Button

C - Up Button

D - Down Button

E - Clock Alarm Button

Clock function in 12-hour mode distinguishes between a.m. and p.m. or in 24-hour mode displays military time. Clock is displayed when the key switch is on and radio is off. With radio and ignition off, display is blank.

Set the Clock:

1. Turn on the key switch.

2. Press and hold “iTitle/Menu” button (A) for more than 2 seconds until Menu is displayed.

3. Press Ok button (B) to enter the clock sub-menu.

4. Turn Audio knob or press up button (C) or down button (D) to change to Set Time. Press Ok button to enter set mode.

5. Turn Audio knob or press up-down buttons to change between 12-hour or 24-hour format. Press Ok button to select one.

6. Display changes to clock configuration, causing hour digits to flash. Rotate Audio knob or press up-down buttons to change hour. Rotating knob clockwise while pressing up button increases hour; rotating counterclockwise while pressing down button decreases hour.

   NOTE: At any point in the time set process, not pressing a button or rotating knob within 8 seconds cancels time set mode, return radio to normal operation and keep whatever setting changes that have been made. Pressing power button or band button sets clock at whatever time selected.

7. Press Ok button. Minute digits begin flashing. Rotate knob clockwise and press up button increases minutes. Rotate knob counterclockwise and press down button decreases minutes.
