Compact Disc (CD) Mode

RXA0101846-UN-06MAY09

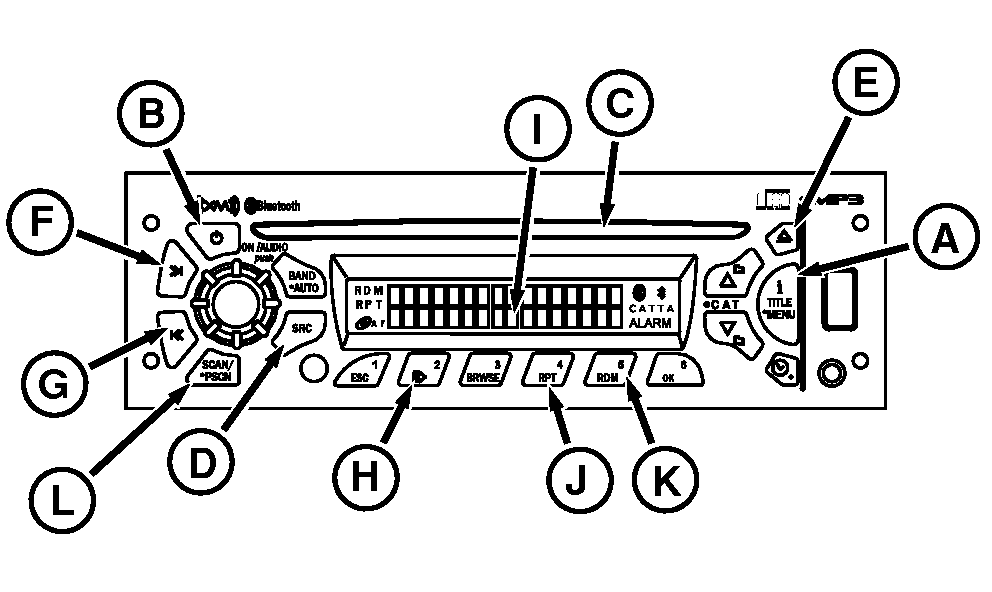

Radio With CD Player

A - iTitle/Menu

B - Radio On

C - CD Slot

D - SRC

E - Eject

F - SCAN >>

G - SCAN <<

H - Pause/Play

I - Display

J - Repeat

K - Random

L - SCAN/PSCAN

NOTE: CD must be loaded into the CD player. If a CD has not been loaded, the option is unavailable and goes to the next available source. If no sources are available, radio remains on Rear AUX.

If CD is ejected and not removed within 15 seconds, CD reloads but does not play until SRC button is pressed.

CD player plays full-size CDs, MP3, and WMA discs.

Playing Compact Disc (CD):

1. Turn ignition on and press On (B) to turn on radio.
2. Insert a disc partway into the CD slot (C), label side up. CD player automatically pulls disc in.
3. Radio displays CD Reading, then CD icon followed by track number and elapsed time until first track is played. Press SRC button (D) to play CD.
4. CD begins to play. CD icon remains on until it is ejected.
5. CD information including disc and track title is shown on display (I) when track starts to play. If there is more information than can appear on display at one time, display advances every 2 seconds until all information has appeared.
6. To remove CD from player, press Eject button (E).

CD Mode Displays: Press the iTitle/Menu button (A) to toggle between different displays views:

• Artist Name
• Song Name
• Album Name

Button Functions

SEEK >> (F):

• Press for less than 2 seconds to forward to the next track.
• Press and hold same button to fast forward and release to resume play.

SEEK << (G):

• Press for less than 2 seconds to go to beginning of the current track.
• Press and hold button to engage fast reverse, release to resume play.
• Press within first 10 seconds of the track, radio goes to the previous track.
• Press again within first second to go to the beginning of the previous track.

PAUSE/PLAY (H):

• Press to pause a CD. “PAUSE” is viewed on radio display (I) and audio is muted.
• Press again to resume playing.

RPT/RPT Folder (J):

• Press to repeat current track playing. “Track Repeat” is displayed.
• Press again to stop repeating.
• When an MP3 CD is placed in the CD player, “Folder Repeat” is enabled.

RDM/RDM Folder (K):

• Press to activate random track selection. RDM icon on display indicates that tracks on the loaded disc are played randomly.
• Press again to stop random track selection.
• When an MP3 CD is placed in the CD player, “Random Folder” is enabled.

TRACK SCAN/PSCAN (L):

• Press for less than 2 seconds to scan tracks on a disc. After playing 8 seconds of the current track, radio will go to the next track.
• When all tracks on disc have been scanned, playback begins with the first track scanned.
• Press again to deactivate the scan.
