iPod Mode

RXA0100816-UN-06MAY09

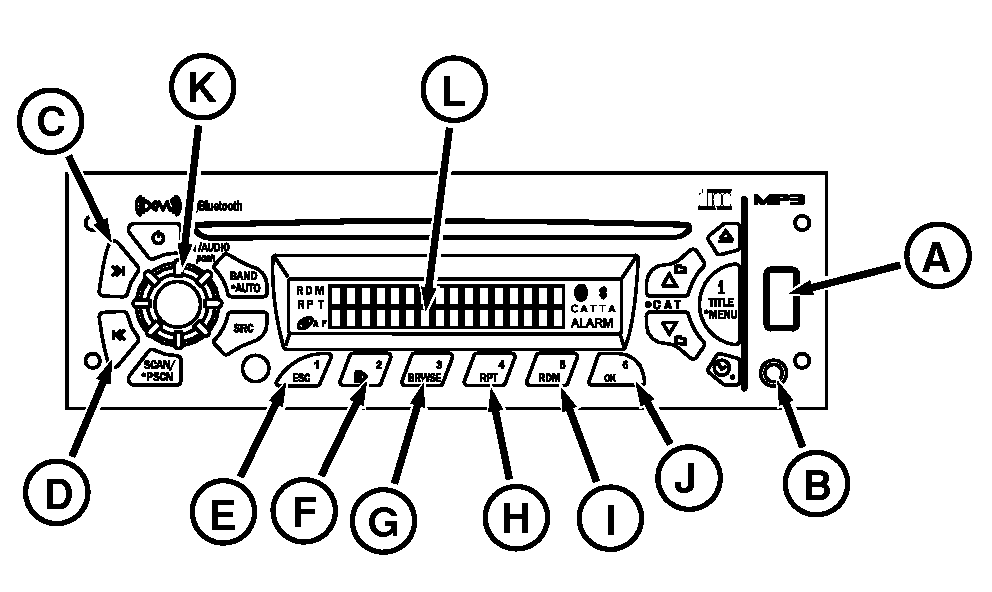

Radio With CD Player

A - USB Connector

B - Radio Aux Input

C - SEEK >> Button

D - SEEK<< Button

E - ESC Button

F - Pause/Play Button

G - BRWSE Button

H - RPT Button

I - RDM Button

J - OK Button

K - Audio Knob

L - Display

IMPORTANT: Do not connect iPhone® or iPod Touch® to radio.

Premium radio can control and play music from an iPod.

1. Insert iPod USB cable connector to the radio USB connector (A) (the other end connected to your iPod).
2. iPod READING appears on display (L).
3. Insert 3.5 mm Audio cable connector to the radio Aux input jack connector (B) (the other end connected to iPod 3.5 mm audio jack connector). If Audio cable is not connected, radio displays “Front Aux Jack Unplugged”.
4. After all connections have been made, and radio has finished reading iPod information, iPod will begin playing. Elapsed time and track number are displayed.
5. Play begins from the current track played on iPod and continues sequentially through all tracks from the iPod last selected mode.
6. After playing iPod last track last selected mode, play stops and iPod Menu appears on radio display (L).
7. To remove iPod USB cable connector, simply pull the device. Radio returns to previous mode/source.

Button Functions

SEEK >> (C):

• Press for less than 2 seconds to forward to the next track.
• Press and hold to fast forward.
• Release button, track continues to play.

SEEK << (D):

• Press for less than 2 seconds to go to the beginning of the current track.
• Press within the first 10 seconds to go to the beginning of the previous track.
• Press and hold button to engage fast reverse.
• Release button, track continues to play.

ESC (E): Press to exit or go back to the previous menu when on a menu.

PAUSE/PLAY (F):

• Press to pause a track, “PAUSE” is displayed and the audio is muted.
• Press again to resume playing the track.

BRWSE (G):

• Press BRWSE button to enter iPod Menu and the following options.
  • Scroll and select with the On/Audio knob (K).
  • Turn to right to increase, left to decrease, and press knob to confirm selection.

RPT (H):

• Press once to repeat current track. RPT icon and “Repeat One Track” appears on display.
• The same file continues to play until the RPT button is pressed again.
• If RPT is pressed a second time, “Repeat All Tracks” appears on display and RPT icon remains turned on.
• The same folder/playlist (iPod last selected mode) continues to play until RPT button is pressed again.
• If RPT is pressed a third time, “Repeat Off” appears on display. Function is off and RPT icon is off. Then display returns to the default screen.

RDM (I): Press to shuffle tracks, albums, or turn off. RDM icon on display indicates that this feature is on.

OK (J): Press OK button when on a menu to confirm selection.
