Cab Classification

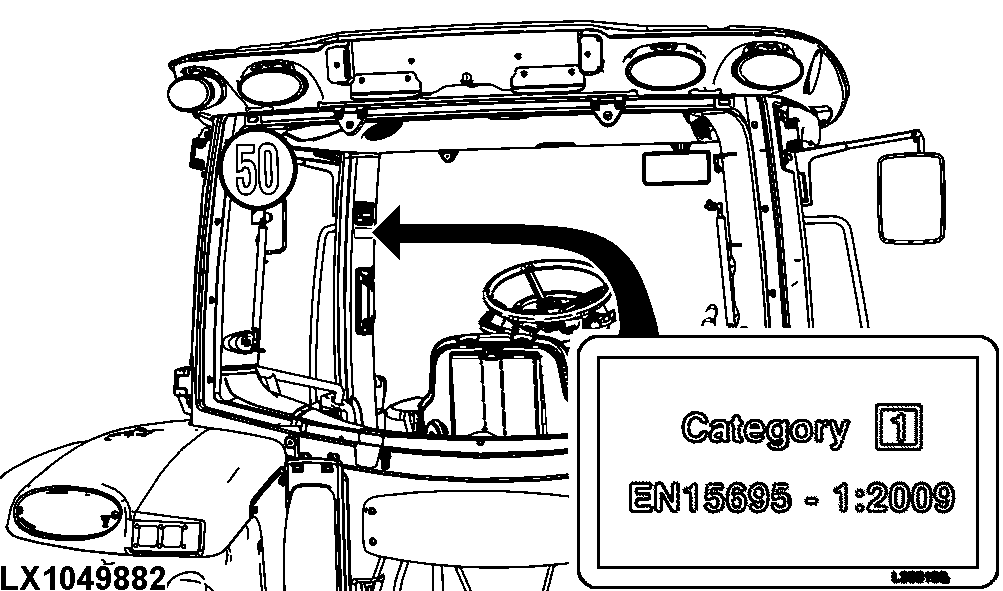

LX1049882-UN-12APR11

Label shown is an example and does not indicate the actual location in the cab or the actual category of the cab fitted to the machine

NOTE: Cab Classification is according to EN 15695-1 (when Applying Plant Protection Products and Liquid Fertilizers)

CAUTION: Before working in an environment containing hazardous substances, that is, when using pesticides, check whether the cab offers sufficient protection. Refer to the product data sheets of the spraying liquid manufacturer specifying the category required for the cab.

CAUTION: Category 3 or 4 cabs, find out whether the installed filters have been checked according to EN 156952: 2009 and whether they are suitable for the chemical being used (refer to the manufacturer information) before working in an environment containing hazardous substances.

CAUTION: The cab air filters must be serviced as specified. See “Clean Cab Air Filters” in the Operator Station Maintenance section.

CAUTION: Refer to product data sheets and product identification of the crop protection chemicals. These contain important information on how to avoid hazards.

Cab classification according to EN 15695-1 provides information on the effectiveness of protection against harmful substances offered by the cab.

Categories 1—4 are used for classification and specified on a label inside the cab.

Replace label if missing or damaged. See your John Deere dealer.

Category 1 — cab does not offer any protection against substances which are harmful to health.

Category 2 — cab offers protection against solid airborne particles such as dust, but not against aerosols and vapors.

Category 3 — cab offers protection against dust and aerosols (liquid airborne substances such as spray), but not against vapors.

Category 4 — cab offers protection against dust, aerosols, and vapors.

The following requirements must be met to offer best protection:

1. All seals (on door, windows and roof) in good condition.
2. Doors, windows, and roof closed during use.
3. Grommets for cables in the cab sealed properly.
4. Fan ON during operation.
5. Cab air filters in good condition.
