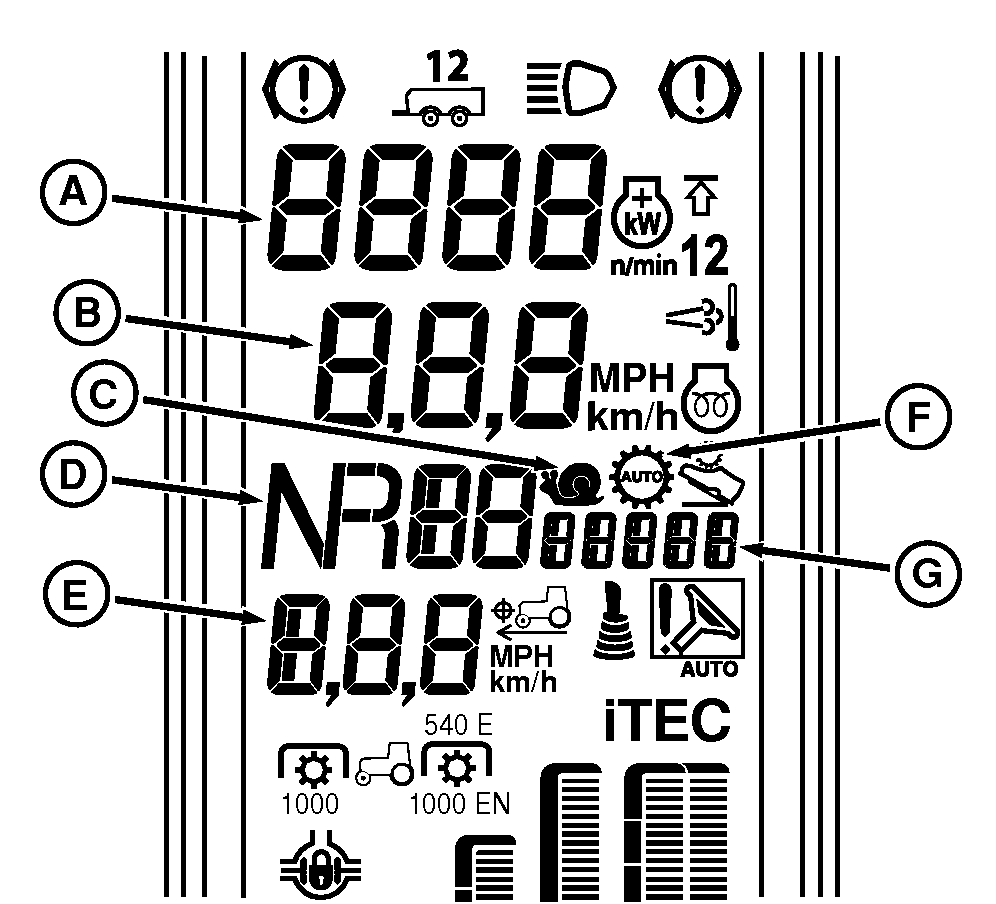

Transmission Indicators

RXA0153892-UN-19SEP16

A - Tachometer

B - Machine Ground Speed

C - Creeper Indicator

D - Current Direction, Range, and Gear

E - Set Speed

F - Auto Shift Indicator

G - Range and Gear Indicator

• Tachometer (A): Displays actual current engine speed in rotations per minute.
• Machine Ground Speed (B): Displays the actual current machine speed in either kilometers per hour or miles per hour.
• Creeper Indicator (C): Illuminates when the creeper lever has been shifted into low or high range.
• Current Direction, Range, and Gear (D): Displays the actual current direction, range, and gear the transmission is in.
  • P Park
  • N Neutral
  • F D2 Forward D2 Gear
  • R A3 Reverse A3 Gear
• Set Speed (E): Indicates the operator selected target speed.
• Auto Shift Indicator (F): Illuminates when transmission is in auto-shift mode.
• Range and Gear Indicator (G): Indicates the operator selected target range and gear.
