Adjust Set Speeds
RXA0153899-UN-19SEP16
RXA0153900-UN-19SEP16

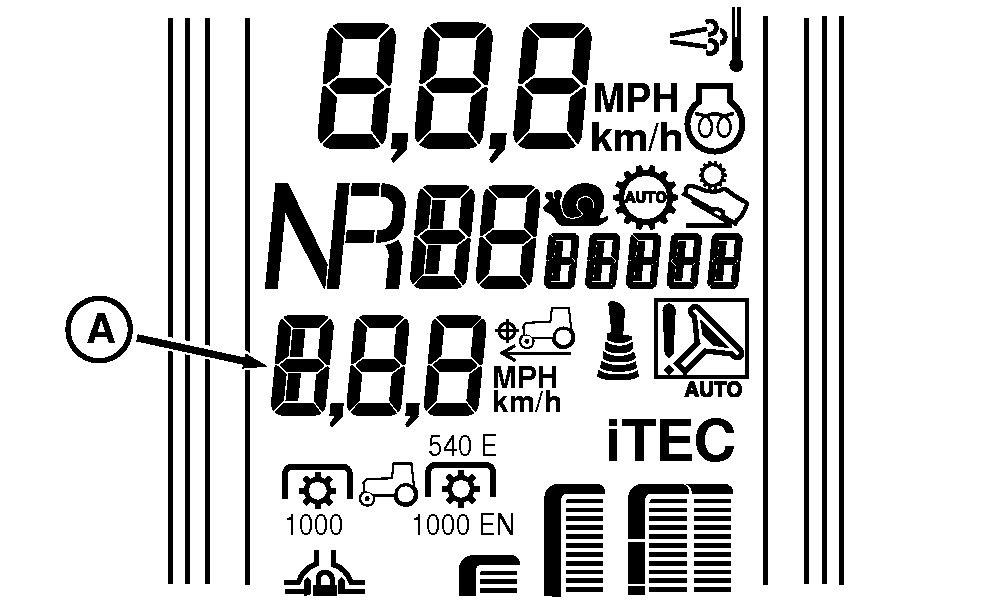

A - Set Speed

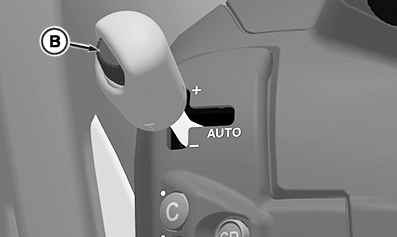

B - Set Speed Adjustment Dial
CAUTION: Avoid unexpected rapid acceleration. Check and adjust
set speeds before putting machine in motion.
- Start engine.
- Transmission can be placed in either Forward or Reverse.
- Forward and reverse set speeds (A) scroll on corner post display pausing at each speed for 2 seconds.
-
Adjust each speed when it displays by rotating set speed adjuster
dial (B) on lever forward to increase set speed value or rearward
to decrease it.
NOTE: Set speed adjustments can affect corresponding set speed
of opposite direction. See reverse/forward speed ratio in “Transmission
Settings” in this section.
Set speed can be adjusted while machine is moving by rotating set speed adjuster dial. Increasing set speed value increases ground speed. Decreasing set speed value decreases ground speed.
- Select set speed approximately 3.2 km/h (2 mph) higher than desired working speed to obtain maximum productivity in applications where precise speed is not critical. Machine reaches higher set speed value during no load or light load condition.
|
Set Speeds For Given Gears 16/16 Transmission |
|||
|---|---|---|---|
|
Range Lock Button |
Set Speed km/h (mph) |
||
|
Minimum |
Maximum |
||
|
Individual |
A |
2.3 (1.4) |
4.4 (2.7) |
|
B |
5.4 (3.4) |
10.2 (6.3) |
|
|
C |
11.3 (7.0) |
21.2 (13.2) |
|
|
Multi-Range (As Selected) |
BCD |
5.4 (3.4) |
42.0 (26.1) |
|
CD |
11.3 (7.0) |
42.0 (26.1) |
|
|
Set Speeds For Given Gears 32/16 Transmission |
|||
|---|---|---|---|
|
Range Lock Button |
Set Speed km/h (mph) |
||
|
Minimum |
Maximum |
||
|
Individual |
A |
2.3 (1.4) |
4.9 (3.0) |
|
B |
5.4 (3.4) |
11.4 (7.1) |
|
|
C |
11.3 (7.0) |
23.8 (14.8) |
|
|
Multi-Range (As Selected) |
BCD |
5.4 (3.4) |
42.0 (26.1) |
|
CD |
11.3 (7.0) |
42.0 (26.1) |
|
|
