Park Brake

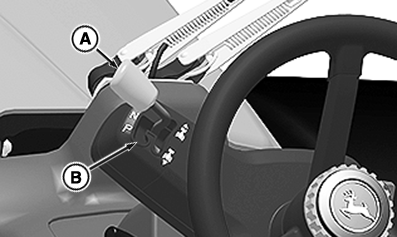

RXA0153890-UN-19SEP16

A - Left-Hand Reverser

B - Park Position

IMPORTANT: Do not attempt to tow the machine before releasing the park brake. See “Transport and Storage” section for more information.

Place the left-hand reverser lever (A) in Park position (B) to engage the park brake.
