Check Transmission-Hydraulic System Oil Level

LV14405-UN-08JUN11

LV14406-UN-08JUN11

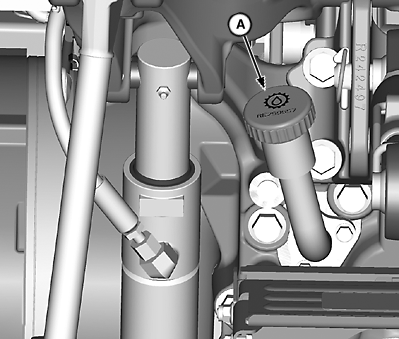

A - Transmission Oil Filler Cap

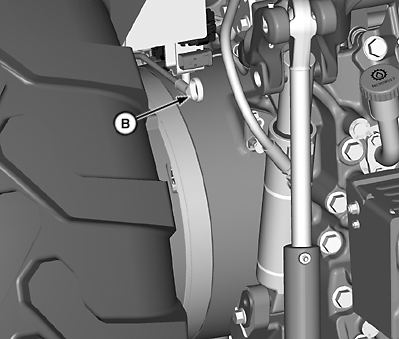

B - Dipstick

SERVICE INTERVAL
	Weekly or 50 Hour

1. Park machine on level ground, lower hitch, and other hydraulic implements.

2. Shut off engine. Remove key.

3. Let oil settle for a minimum of five minutes.

4. Check level at the mark on dipstick (B). Level must be at the full oil level mark.

5. Remove oil filler cap (A), and add transmission oil to the filler port if level is low. See “Fuel, Lubricants, and Coolant” section for correct oil.
