Change Transmission-Hydraulic Filter (Open Center)

LV14613-UN-11AUG11

LV14782-UN-16SEP11

LV14783-UN-16SEP11

A - Transmission Oil Filter

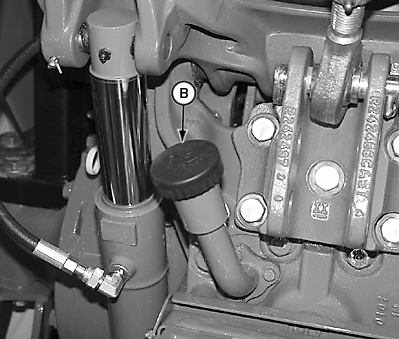

B - Transmission Oil Filler

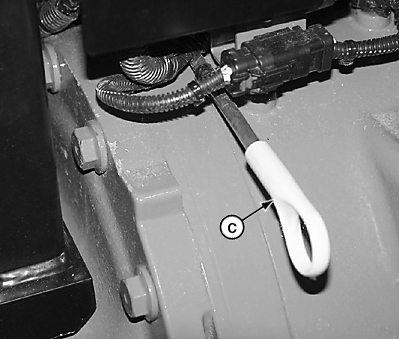

C - Transmission Oil Dipstick

SERVICE INTERVAL
	INITIAL — 100 Hour
	REGULAR (AFTER INITIAL CHANGE) — Every 600 Hour

IMPORTANT: Capture oil from filter using a drain pan. Dispose of waste oil properly.

1. Park machine on level ground and shut off engine. Remove key.

2. Remove transmission oil filler cap and, using a shop-vac, apply suction to the fill port to prevent excessive draining of hydraulic fluid.

3. Remove transmission-hydraulic filter (A) from filter base.

4. Clean threads on filter base and on new filter.

5. IMPORTANT: DO NOT over tighten filter.

   Apply oil to new filter seal and install filter (A). Tighten filter by hand, then tighten an additional 1/8 turn.

6. Check oil level with dipstick (C).

7. If level is low, remove transmission oil filler cap (B) and add transmission-hydraulic oil as necessary to fill system. See “Fuel, Lubricants, and Coolant” section for correct oil.

8. Recheck oil level after five minutes of operation.
