Change Transmission-Hydraulic Oil and Filter (Open Center)

SERVICE INTERVAL
	Every 1200 Hour

LV14613-UN-11AUG11

LV14662-UN-18AUG11

LV14663-UN-18AUG11

LV14665-UN-18AUG11

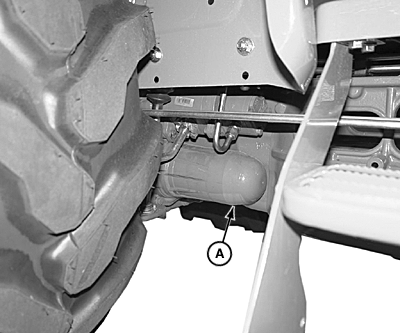

A - Transmission Hydraulic Oil Filter

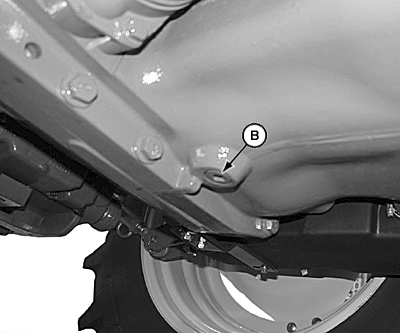

B - Transmission Drain Plug

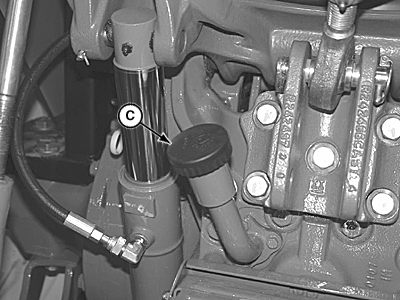

C - Transmission Oil Filler Cap

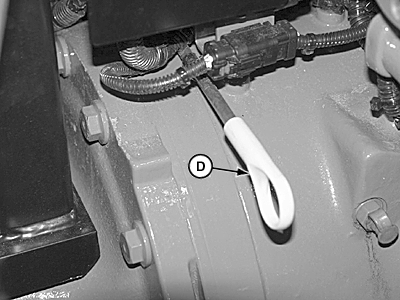

D - Transmission Oil Dipstick

IMPORTANT: Capture oil from reservoir and filter using a drain pan. Dispose of waste oil properly.

NOTE: There is no separate suction screen for the Open Center system. The screen is built-in to the filter assembly and can not be serviced.

1. Lower rear hitch to remove trapped oil.

2. Park machine on level ground and shutoff engine. Remove key.

3. Remove transmission drain plug (B).

4. Remove transmission hydraulic oil filter (A) from the filter base.

5. Clean threads on the filter base and on the new transmission hydraulic oil filter with clean transmission-hydraulic oil.

6. IMPORTANT: DO NOT over tighten filter.

   Apply oil to the new transmission hydraulic oil filter seal and install transmission hydraulic oil filter. Tighten transmission hydraulic oil filter by hand, then tighten an additional 1/8 turn.

7. Install transmission drain plug.

8. Remove oil filler cap (C) and fill oil. See “Fuel, Lubricants, and Coolant” section for correct oil.

   Item	Measurement	Specification
   Transmission Oil	Capacity	44.5 L (11.75 gal)

9. Check oil level with dipstick (D) and again after five minutes of operation.
