Change Transmission-Hydraulic Oil and Filter (Closed Center)

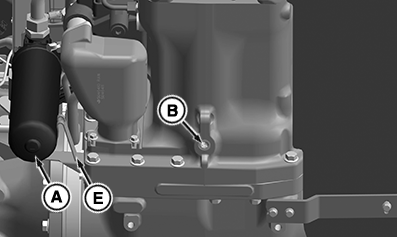

RXA0153241-UN-14NOV16

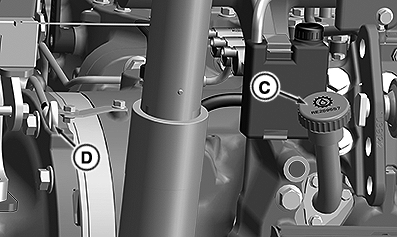

RXA0153242-UN-08AUG16

A - Transmission Hydraulic Oil Filter

B - Transmission Drain Plug

C - Transmission Oil Filler Cap

D - Transmission Oil Dipstick

E - Filter Bracket

SERVICE INTERVAL
	Every 1500 Hour

IMPORTANT: Capture oil from reservoir and filter using a drain pan. Dispose of waste oil properly.

NOTE: Recommended to inspect and clean the suction screen each time transmission-hydraulic oil and filter are changed. See “Clean Transmission Suction Screen (Closed Center)”.

1. Lower rear hitch to remove trapped oil.

2. Park machine on level ground and shutoff engine. Remove key.

3. Remove transmission drain plug (B). Drain oil out.

4. Loosen filter bracket (E).

5. Remove transmission hydraulic oil filter (A) from the filter base.

6. Clean threads on the filter base and on the new transmission hydraulic oil filter with clean transmission-hydraulic oil.

7. IMPORTANT: DO NOT over tighten filter.

   Apply oil to the new transmission hydraulic oil filter seal and install transmission hydraulic oil filter. Tighten transmission hydraulic oil filter by hand, then tighten an additional 1/8 turn.

8. Tighten filter bracket (E).

9. Install transmission drain plug.

10. Remove oil filler cap (C) and fill oil. See “Fuel, Lubricants, and Coolant” section for correct oil.

    Item	Measurement	Specification
    Transmission Oil	Capacity	47.5 L (12.5 gal)

11. Check oil level with dipstick (D) and again after five minutes of operation.
