Add Liquid Ballast to Tires

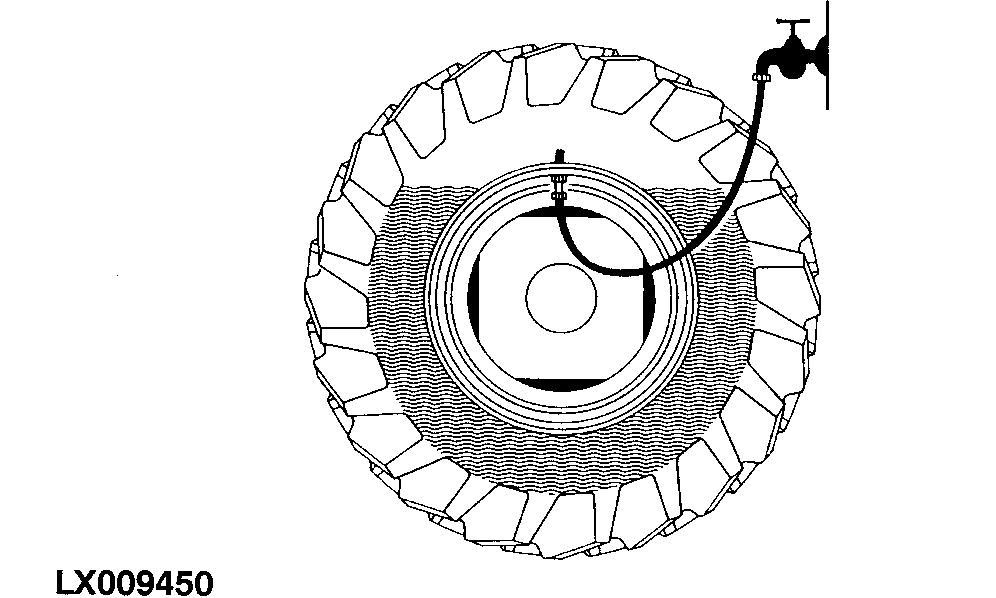

LX009450-UN-03JAN95

To fill a tire:

1. Jack up machine and turn wheel so that the tire valve is at the top.

2. Remove valve insert and screw water valve onto the valve stem. While water is entering, air escapes through a lateral bore in the water valve.

3. Stop filling tire when water drains from the vent hole of valve. Depending on tire size, filling a tire takes 15—30 minutes. Quantity of liquid ballast required varies depending on tire size and type. If in doubt, consult your John Deere dealer or tire manufacturer.

4. After adding liquid, screw in the air valve and pump up tire to normal inflation pressure.

For low temperature climates:

1. NOTE: Add calcium chloride to the water, NOT water to calcium chloride.

   Do not use this antifreeze solution in radiator.

   There are several types of liquid ballast available. Tire manufacturers recommend a mixture of water and calcium chloride. To provide protection down to -25°C (-13°F), dissolve 34 kg (75 lb) of calcium chloride in 86 L (22.7 gal) of water. This mixture makes 100 L (26.4 gal) of antifreeze solution. This solution produces an increase in weight of 120 kg (269 lb).

2. Draw antifreeze solution from an elevated tank. To speed up filling operation, use a pump (flush pump with clear water afterwards).
