Machine Dimensions

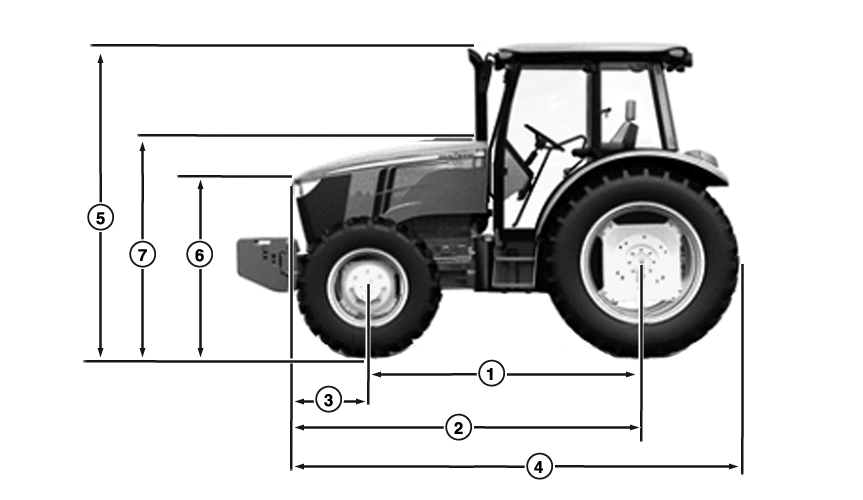

RXA0154429-UN-18NOV16

1 - Wheelbase

2 - Hood Length

3 - Hood in Front of Axle

4 - Overall Length

5 - Overall Height

6 - Front Hood Height

7 - Rear Hood Height

NOTE: Measurements made with 16.9R34 rear tires.

	Millimeters	Inches
Wheelbase	2250	88.6
Hood Length	2995	117.9
Hood in Front of Axle	695	27.4
Overall Length	3753	147.8
Overall Height	2695	106.1
Front Hood Height	1420	55.9
Rear Hood Height	1793	70.6

	Millimeters	Inches
5R (with fender extension)	2210	87
5R (without fender extension)	1880	74
5RN (without fender extension)	1700	66.9
