Change Open Crankcase Vent Filter (OCV)

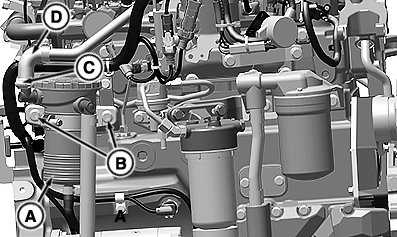

RXA0155752-UN-23NOV16

Right Side of Engine

A - OCV Filter Housing

B - Cap Screws (2 used)

C - Hose Clamp

D - Hose

SERVICE INTERVAL
	Every 1500 Hour

1. Remove cap screws (B) and remove OCV housing (A).

2. Loosen clamp (C) and remove hose (D).

3. Unscrew filter top and remove filter.

4. Clean filter housing.

5. Install new filter and reinstall filter top.

6. Reinstall hose (D) and tighten clamp (C).

7. Reinstall OCV housing (A) and tighten cap screws (B) to proper torque.

   Item	Measurement	Specification
   Cap Screw	Torque	70 N·m (52 lb·ft)
