Change Engine Oil and Filter

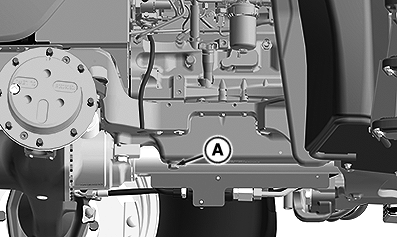

RXA0152210-UN-27OCT16

Bottom Left Side of Engine

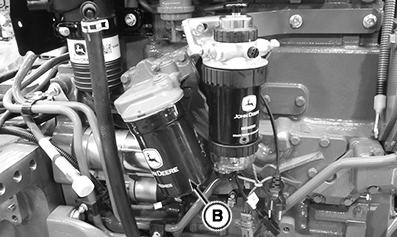

RXA0152211-UN-26MAY16

Right Side of Engine

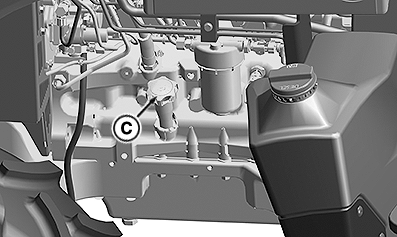

RXA0153039-UN-21JUL16

Left Side of Engine

A - Engine Oil Drain Plug

B - Engine Oil Filter

C - Crankcase Fill

SERVICE INTERVAL
	INITIAL — 100 to 500 Hour
	REGULAR (AFTER INITIAL CHANGE)— 500 HOURS If John Deere Plus-50™ II oil and John Deere filter are used. All other brands are 250 hours.

1. Operate engine to warm oil.

2. Park machine on level ground and shutoff engine.

3. Remove key.

4. Remove oil drain plug (A) and drain oil.

5. Open hood.

6. Remove engine oil filter (B). Make sure that old filter gasket is removed from housing before installing new filter.

7. Apply a film of oil on the new oil filter gasket and install new filter. Hand-tighten plus 1/2 turn.

8. Install drain plug (A).

9. Add oil to filler (C). See “Fuel, Lubricants, And Coolant” section for oil grades and specifications.

   Item	Measurement	Specification
   Engine Crankcase Oil	Capacity	11.6 L (2.6 gal)

10. Replace dipstick.

11. Start engine and inspect drain plug (A) and filter (B) for leaks.

12. Stop engine and remove key.

13. Recheck oil level on dipstick, add if necessary.

14. Lower hood.
