Inspect Seat Belts

SERVICE INTERVAL
	Annaully

RXA0152422-UN-14JUN16

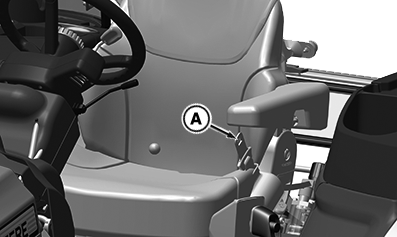

Operator Seat Belt

RXA0153059-UN-17AUG16

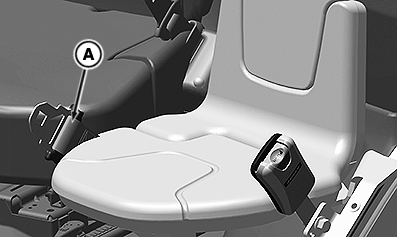

Passenger Seat Belt

A - Seat Belts

CAUTION: Inspect operator and passenger seat belts (A), buckles, retractors, and mounting hardware. Check for any sign of damage, cuts, fraying, extreme or unusual wear, discoloration, or abrasions.

If damage is found, the entire seat belt system must be replaced immediately. Replace the belt system only with replacement parts approved for your machine. See your John Deere dealer.
