Replace Fuses

RXA0153111-UN-01NOV16

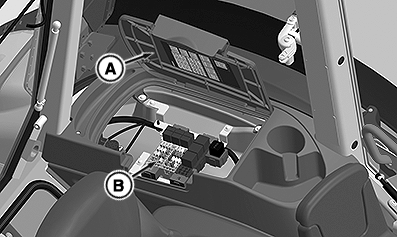

Left-Hand Console

A - Cover

B - Load Center Fuse and Relay Block

IMPORTANT: DO NOT replace the original fuse with a higher rated fuse or machine damage can occur. If the original size fuse does not carry electrical load and continues to blow, have the electrical system checked by your John Deere dealer.

NOTE: A fuse and relay reference label is provided inside cover.

Remove cover (A) to access main load center fuse and relay block (B).

All electrical circuits are protected by fuses. Amperage rating is marked on each fuse, plus fuses are color coded to ensure proper replacement.

Fuse Rating in Amperes	Color
5	Orange
10	Red
15	Blue
20	Yellow
30	Green

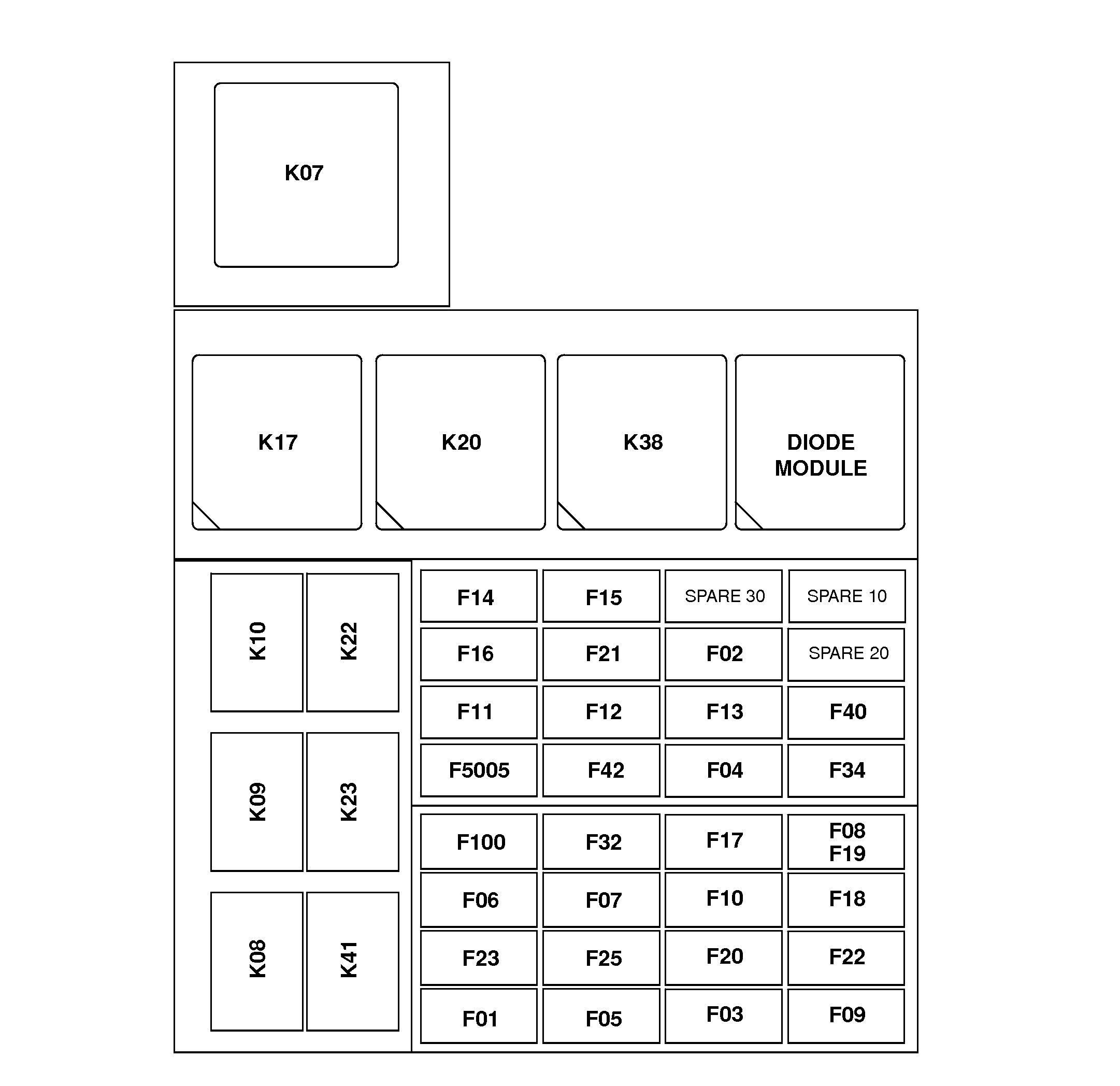

RXA0152691-UN-01AUG16

K07 - ACC PWR

K08 - Trailer Work Lamp

K09 - Brake Lamp

K10 - Beacon Lamp

K17 - Implement PWR

K20 - HVAC / BLOWER

K22 - Left Blower

K23 - Right Blower

K38 - Outer Flood Lamp

K41 - Not Used

F01 - Key Switch

F02 - Rear Wiper

F03 - Radio / Horn / Seat

F04 - Front PTO Controller Power

F05 - Brake Lamp

F06 - Junction Block Unswitched PWR

F07 - Dome Lamp

F08 / F19 - Loader Power / CommandARM

F09 - FAS Controller Power

F10 - Implement PWR

F11 - Junction Block Unswitched PWR

F12 - Radio

F13 - Seat

F14 - Transmission Controller

F15 - ISO Connector

F16 - Power Outlet

F17 - EH SCV PWR

F18 - Beacon Lamp

F20 - Outer Roof

F21 - Convenience Outlet

F22 - Convenience Outlet

F23 - HVAC / Right Blower

F25 - Left Blower

F32 - Subwoofer

F34 - Come Home

F100 - Implement Lamp

F5005 - ECU Power

F40 - Radio Keep Alive Fuse

F42 - SBBC Power

Spare - 10

Spare - 20

Spare - 25

Spare - 30

DM - Diode Module
