Replace Step Light

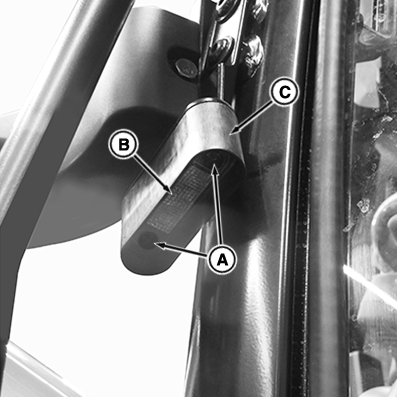

RXA0155756-UN-29NOV16

A - Screws

B - Light

C - Step Light Housing

1. Remove screws (A) from step light (B).

2. Pull light assembly from the housing (C).

3. Replace with new light and reassemble in reverse order of removal.
