Replace Corner Work Light Bulb

RXA0154415

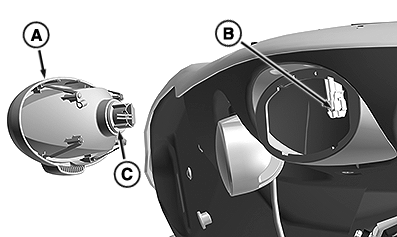

RXA0154415-UN-02NOV16

A - Corner WorkLight Housing

B - Harness Connector

C - Bulb Socket

  1. Pull outward on the bottom of the housing (A) to remove it from the roof.

  2. Disconnect harness (B) from bulb socket (C).

  3. Rotate socket and remove from housing.

  4. Pull bulb to remove from socket.

  5. Install new bulb in socket.

  6. Reinstall in reverse order.

MB86926,00002EB-19-20161201
