Lubricate Suspended Front Axle

SERVICE INTERVAL
	Every 250 Hour

RXA0150969-UN-02DEC16

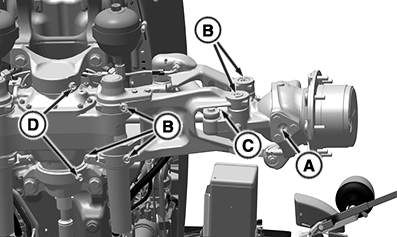

Right Side Bottom View Suspended Front Axle

RXA0150970-UN-02DEC16

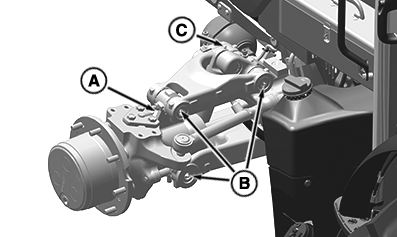

Left Side Bottom View Suspended Front Axle

RXA0150971-UN-02DEC16

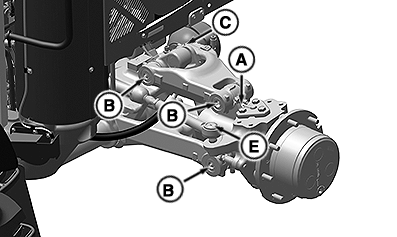

Left Side Top View Suspended Front Axle

RXA0150972-UN-02DEC16

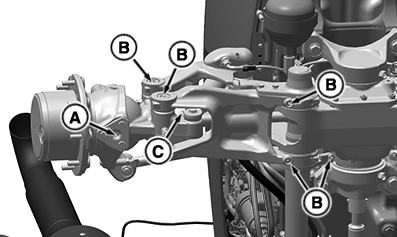

Right Side Top View Suspended Front Axle

A - Upper/Lower Kingpin Grease Point

B - Upper/Lower Arm Pivot Grease Point

C - Suspended Fron Axle Cylinder Grease Point

D - Axle Pivot Point Grease Point

Apply several shots of general-purpose grease (See “Fuel, Lubricants, and Coolant”) to front suspended axle.

NOTE: Daily service is necessary when operating in extremely wet and muddy conditions.
