Bucket Lights

RXA0155965-UN-09DEC16

RXA0153724-UN-13DEC16

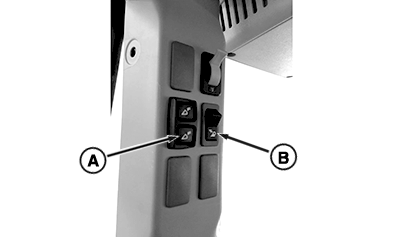

A - Bucket Attach / Detach Switch

B - Bucket Light Switch

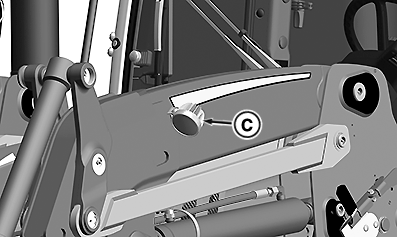

C - Bucket Lights

NOTE: Switches are on the B post or in the right-hand console.

Bucket lights (C) are on the loader mast and illuminate the bucket and contents no matter how the loader is positioned.

See relevant loader operators manual for bucket light (B) and bucket attach / detach (A) switch operation.
