Cab Suspension

NOTE: Inspect cab suspension components for debris build-up. Clean out as required.

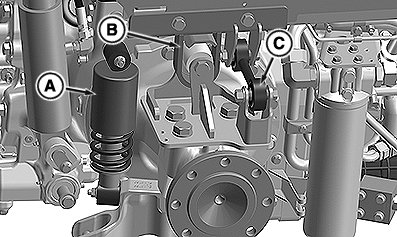

RXA0153916-UN-23SEP16

A - Suspension Spring

B - Vertical Travel Limiter

C - Side Travel Limiter

Cab suspension is dampened by the suspension spring (A). Vertical (B) and side (C) travel limiters allow the cab suspension to work but prevent damage to the suspension spring.
