Check Engine Indicators and Gauges

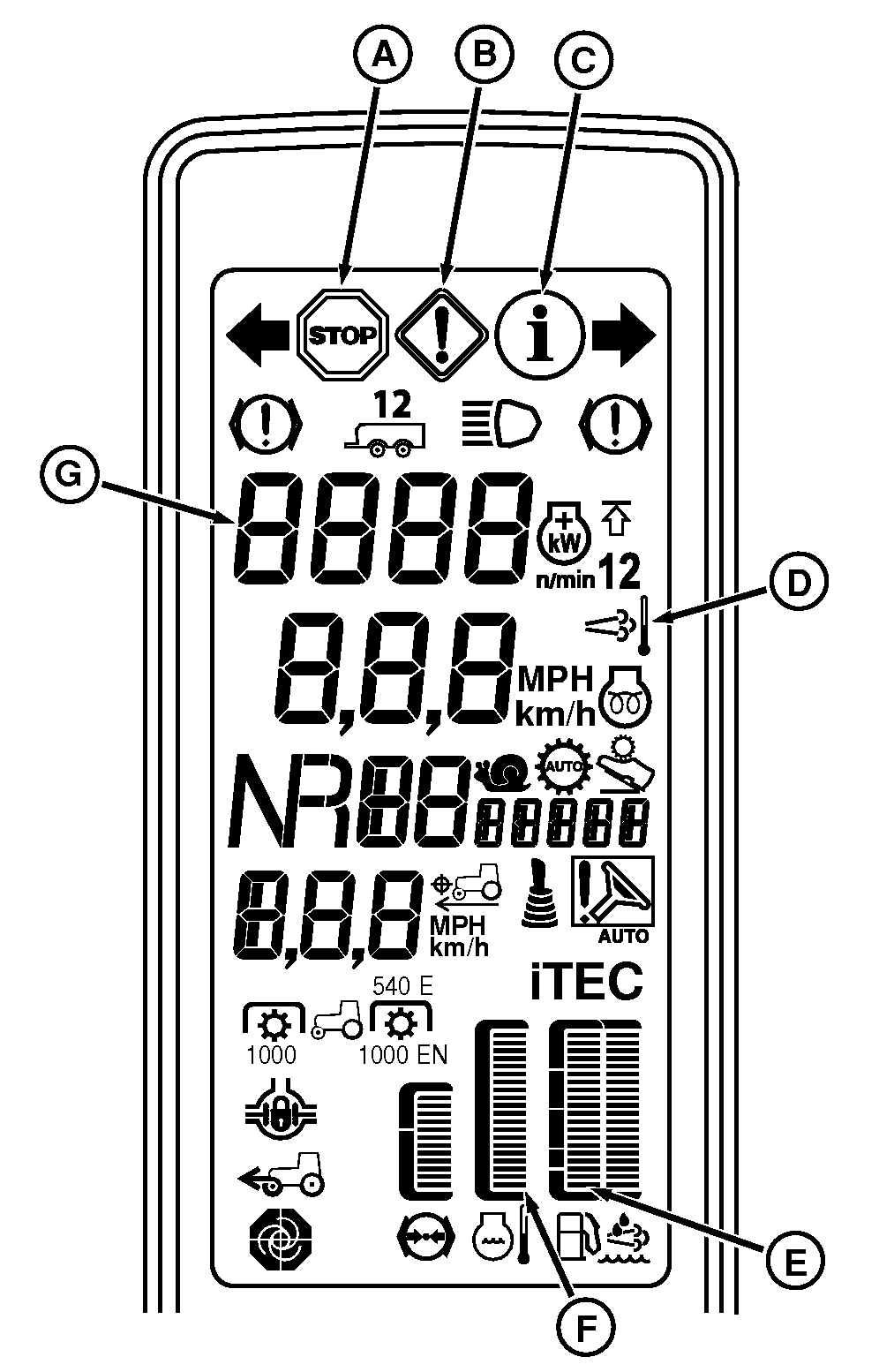

RXA0155018-UN-26OCT16

A - Stop Indicator

B - Warning Indicator

C - Information Indicator

D - Exhaust Temperature Indicator

E - Fuel Level Gauge

F - Coolant Temperature Gauge

G - Tachometer

STOP Indicator (A): Flashes and an audible alarm sounds continuously if a serious malfunction occurs. Trouble codes are present, requiring a machine shutdown. Immediately stop, reduce engine speed, then SHUT OFF engine or machine damage occurs. If necessary, have John Deere dealer diagnose problems.

Warning Indicator (B): Flashes and an audible alarm sounds five times if a malfunction occurs. Trouble codes are present, but are not requiring an immediate machine shutdown. Access information display to determine severity of DTCs. If necessary, have John Deere dealer diagnose the problem.

Information Indicator (C): Illuminates continuously to indicate a possible problem. Trouble codes may be present. Access information display to determine if trouble codes are present. If necessary, have John Deere dealer diagnose the problem.

Exhaust Temperature Indicator (D): Illuminates if high temperatures exist inside the exhaust filter, which allow active filter cleaning to occur.

Fuel Level Indicator Gauge (E): Indicates the volume of fuel left in the tank. As volume is reduced, bars disappear from the display. Avoid running out of fuel to prevent damage to engine components.

Engine Coolant Temperature Gauge (F): Indicates the engine coolant temperature. If indicator bars reach the red zone on the display, stop engine. Clean debris from grilles, radiator, and coolers. Allow the engine to cool completely, check coolant level and fan belt tension.

Tachometer (G): Engine revolutions per minute (rpm) are represented in hundreds.
