Fuel Level Gauge

RXA0155225-UN-31OCT16

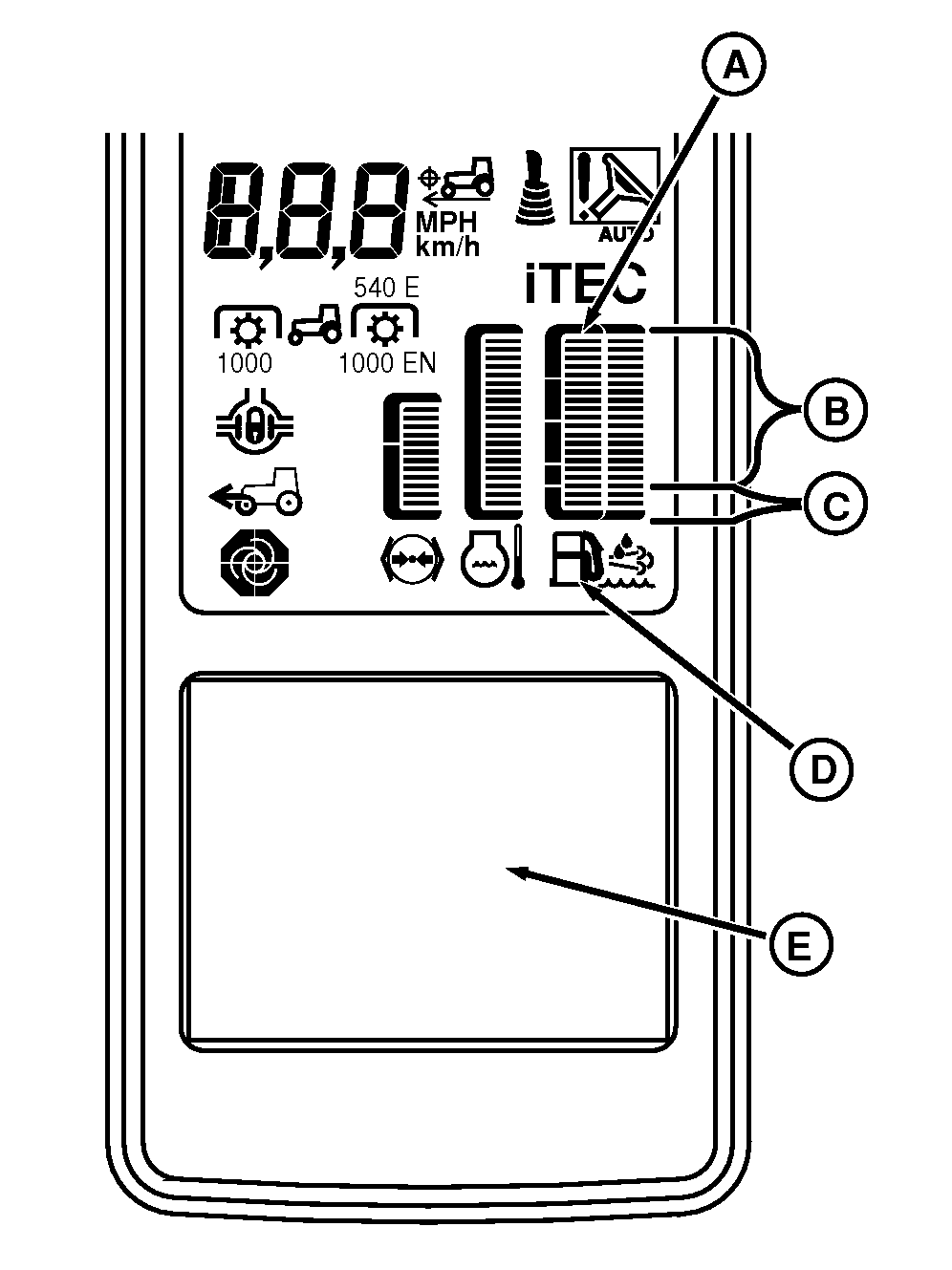

Fuel Gauge

A - Fuel Level Gauge

B - Normal Fuel Level

C - Low Fuel Level

D - Fuel Indicator

E - Information Display

Fuel level gauge (A) is a quick visual check for the operator. Fuel indicator (D) will flash and alarm will sound when fuel level is getting low. The information display (E) shows an alarm or code for low fuel level as well.

Normal Fuel Level (B):

When fuel level is in the normal level range, indicator (D) will illuminate white and machine operates normally. Always keep level within this range for uninterrupted performance.

Low Fuel Level (C):

When fuel level falls into the low level range, indicator (D) will flash amber, trouble codes are displayed, and an alarm sounds. Fuel must be filled to continue normal operation.

When fuel level approaches zero, indicator (D) will illuminate amber continuously, trouble codes are displayed, and an alarm sounds. Fuel must be filled to continue normal operation.
