Tail and Brake Lights

RXA0153629-UN-30AUG16

RXA0155544-UN-08NOV16

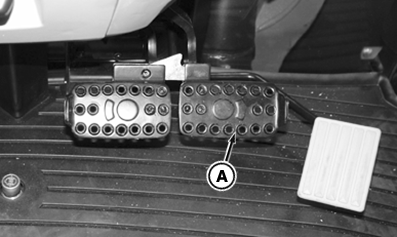

A - Brake Pedals

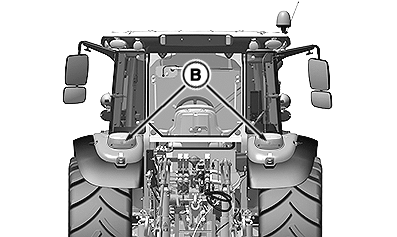

B - Tail and Brake Lights

Tail and brake lights (B) both illuminate the same dual intensity bulb. When the light switch is in park or road position, the tail light portion illuminates.

If one or both brake pedals (A) are depressed, the intensity of the light increases since both filaments are illuminated.
