Beacon Lights

RXA0155548
RXA0155548-UN-08NOV16

RXA0153620
RXA0153620-UN-29AUG16

RXA0153625
RXA0153625-UN-30AUG16

RXA0100494
RXA0100494-UN-11FEB09

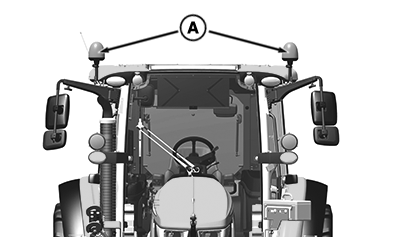

A - Beacon Lights

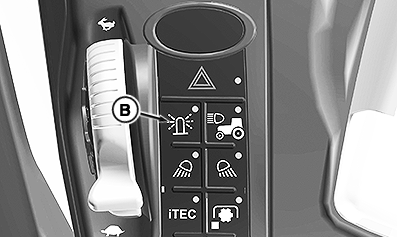

B - Beacon Light Button

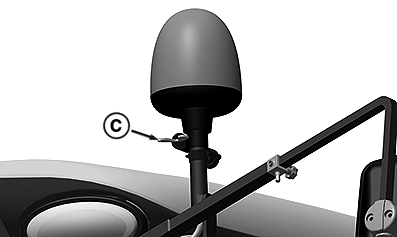

C - Wingnut

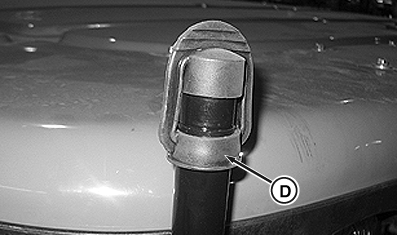

D - Protective Cap

CAUTION: Use beacon lights on public roadways during day or night.

NOTE: Machine can be equipped with zero, one (right or left-hand) or two beacon lights. Check local regulations for requirements.

Depress beacon light button (B) on the keypad to illuminate beacon lights (A). Depress again to turn off lights.

Beacon light assembly can be removed if desired to prevent damage.

  1. Loosen wing nut (C) and remove light assembly.
  2. Install rubber protective cap (D) on connector.
  3. Store light assembly in the machine.
  4. Reverse removal process to reinstall light.

MP60050,000091D-19-20161202
