Side and Rear Work Lights

RXA0155551-UN-08NOV16

RXA0155552-UN-08NOV16

RXA0153630-UN-30AUG16

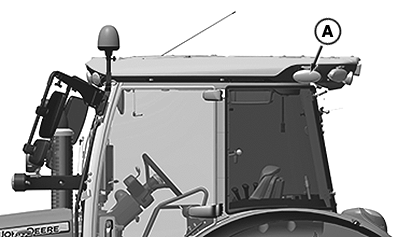

A - Side Work Lights (other side location is similar)

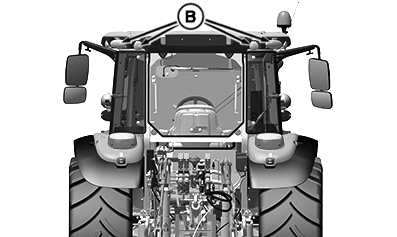

B - Rear Work Lights

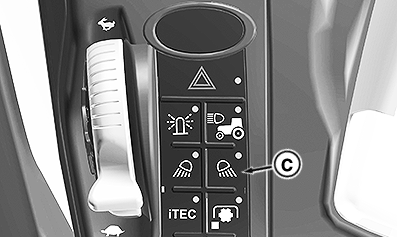

C - Side and Rear Work Lights Button

CAUTION: DO NOT use side and rear work lights on public roadways during day or night.

Depress side and rear work lights button (C) on the keypad to illuminate side (A) and rear work lights (B). Depress again to turn off lights.
