Implement Connector

RXA0155557-UN-09NOV16

RW21249A-UN-29APR99

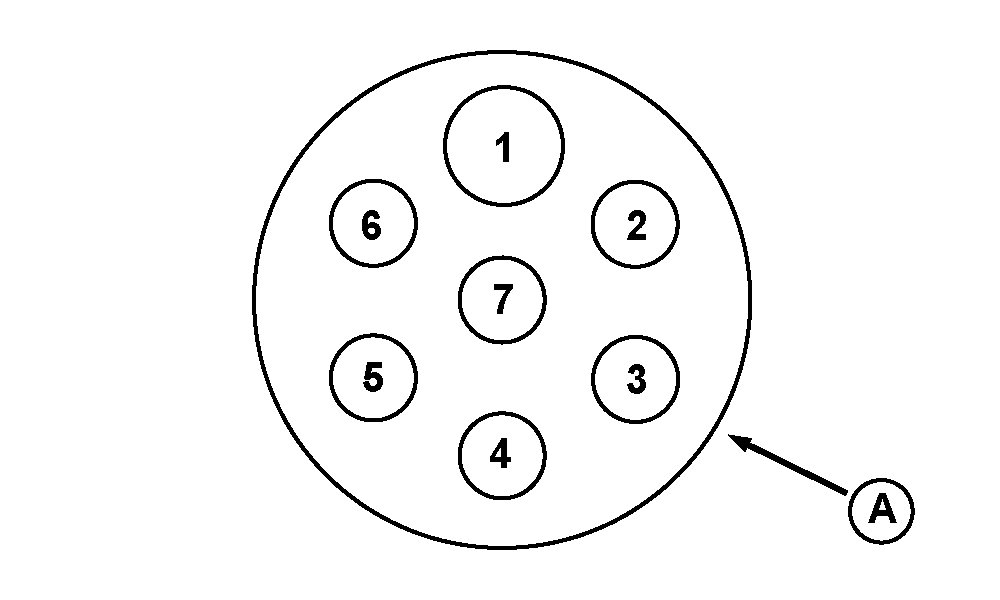

Connector Terminals

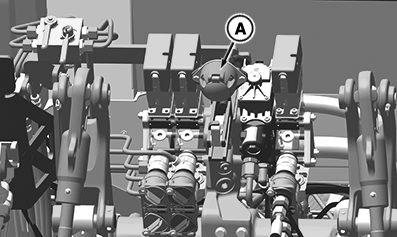

A - Implement Connector

NOTE: Matching 7-pin plug is available through your John Deere dealer.

Rear-mounted 7-pin outlet (A) is used to connect lights, turn signals and other remote trailer or implement electrical equipment to the machine electrical system.

Terminal Number	Function
1	Left Turn
2	Auxiliary Power
3	Ground
4	Right Turn
5	Right Tail Light
6	Brake Lights
7	Left Tail Light

Always use auxiliary light on towed implement when machine rear signals and other lights are obscured.
