Convenience Outlets

RXA0155558-UN-09NOV16

RXA0155559-UN-09NOV16

RXA0155560-UN-09NOV16

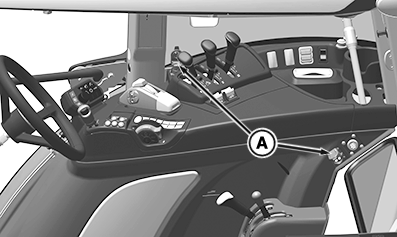

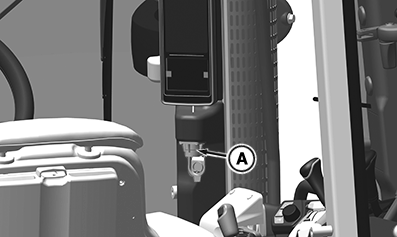

A - Convenience Outlets

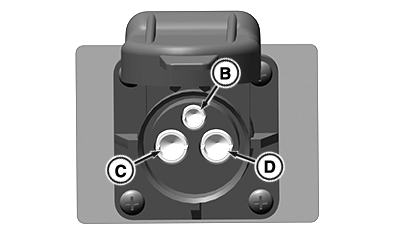

B - Battery Power (Unswitched)

C - Battery Power (Switched)

D - Ground

Convenience outlets (A) on right-hand console or right-hand corner post are used when connecting auxiliary equipment.

For additional information on connections, see auxiliary equipment installation instructions or your John Deere dealer.
