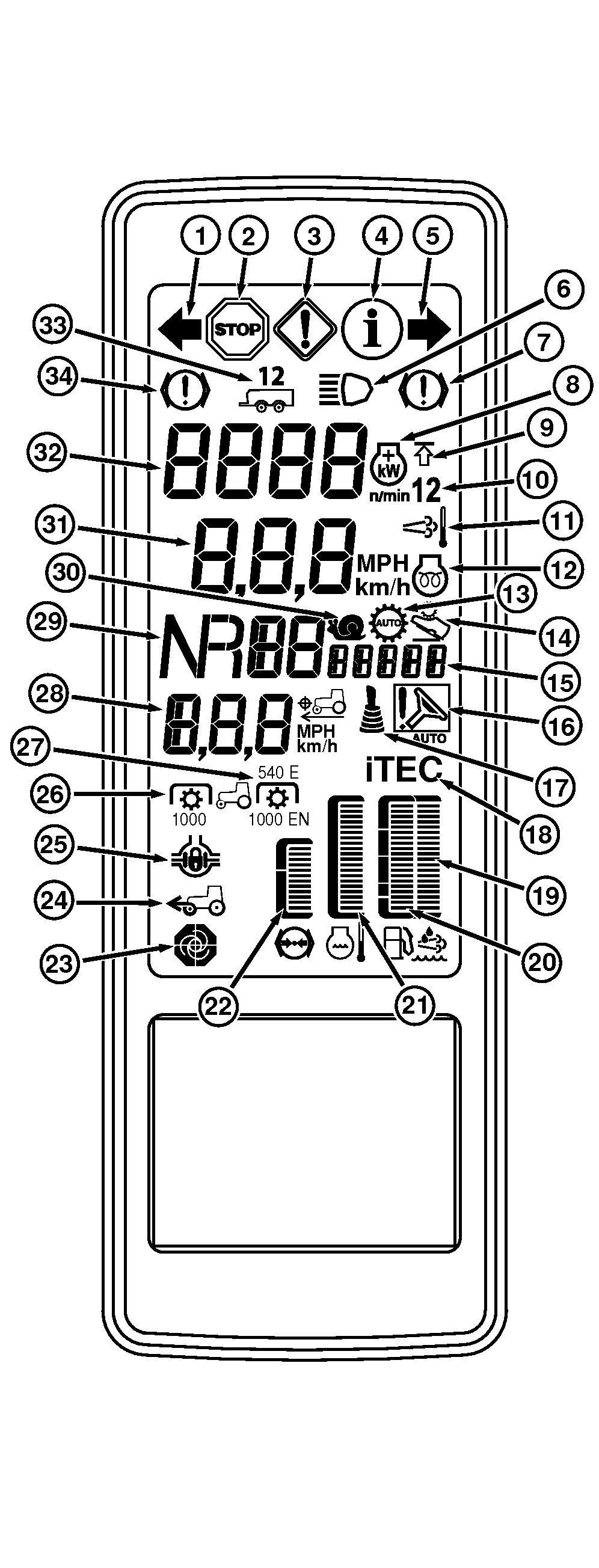

Primary Display

RXA0153095-UN-28JUL16

1 - Left Turn Indicator

2 - Stop Indicator

3 - Service Alert Indicator

4 - Information Indicator

5 - Right Turn Indicator

6 - High Beam Indicator

7 - Brake System Warning Indicator

8 - Intelligent Power Management Indicator

9 - FieldCruise™ Indicator

10 - FieldCruise™ Selection Indicator

11 - Exhaust Filter Cleaning Indicator

12 - Engine Preheat Indicator

13 - Auto Shift Indicator

14 - Foot Pedal Mode Indicator

15 - Range and Gear Indicator

16 - Not Used

17 - Not Used

18 - iTEC™ Indicator

19 - Not Used

20 - Fuel Level Gauge

21 - Coolant Temperature Gauge

22 - Air Brake Pressure Gauge

23 - Not Used

24 - MFWD Indicator

25 - Differential Lock Indicator

26 - Front PTO Indicator

27 - Rear PTO Indicator

28 - Set Speed

29 - Current Direction, Range, and Gear

30 - Creeper Indicator

31 - Machine Ground Speed

32 - Tachometer

33 - Trailer Indicator

34 - Brake System Stop Indicator

1	Left Turn	Flashes when turn signal switch is switched to the left-hand side.
2	Stop	Illuminates when a serious malfunction occurs. SHUT OFF engine IMMEDIATELY and determine cause (review error message on information display). If necessary, have your John Deere dealer diagnose machine.
3	Service Alert	Illuminates when a malfunction occurs (review error message in information display). If necessary, have your John Deere dealer diagnose machine.
4	Information	Illuminates when a possible fault condition has been detected. Monitor machine for potential problems.
5	Right Turn	Flashes when turn signal switch is switched to the right-hand side.
6	High Beam	Illuminates when the headlights are switched to high beam.
7	Brake System Warning	Illuminates when a brake system malfunction occurs. Brake system does not perform as expected. Have John Deere dealer diagnose machine.
8	Intelligent Power Management	Illuminates when controlled engine power boost is active.
9	FieldCruise™	Illuminates when maximum set speed is active.
10	FieldCruise™ Selection	Illuminates which maximum set speed setting is activated at the current time.
11	Exhaust Filter Cleaning	Illuminates when exhaust filter temperatures are hot enough to allow active cleaning.
12	Engine Preheat Indicator	Illuminates when engine air heater is active. A countdown utilizing the ground speed indicator occurs.
13	Auto Shift	Illuminates when the auto-shift mode is active.
14	Foot Pedal Mode	Illuminates when foot pedal mode has been activated.
15	Range and Gear	Indicates the operator selected range and gear.
16	Autotrac (Not Used)	Does not display for non-Autotrac or Autotrac Universal machines.
17	ISOBUS Auxiliary Mode (Not Used)	Illuminates when ISOBUS auxiliary mode is activated.
18	iTEC™	Illuminates when iTEC™ is active.
19	Diesel Exhaust Fluid (DEF) Gauge (Not Used)	Indicates amount of diesel exhaust fluid remaining in the tank.
20	Fuel Level Gauge	Indicates amount of fuel remaining in tank.
21	Coolant Temperature Gauge	Indicates engine coolant temperature. Red area indicates overheat (coolant level too low, dirty radiator, or clogged screen). SHUT OFF engine IMMEDIATELY to prevent damage. If necessary, have your John Deere dealer diagnose machine.
22	Air Brake Pressure Gauge	Indicates the amount of air brake pressure in the system.
23	Implement Automation (Not Used)	Not used currently.
24	MFWD	Illuminates when mechanical front-wheel drive is engaged.
25	Differential Lock	Illuminates when differential lock in engaged.
26	Front PTO	Illuminates when front PTO is engaged.
27	Rear PTO	Illuminates when rear PTO is engaged.
28	Set Speed	Indicates the operator selected target speed.
29	Current Direction, Range, and Gear	Indicates the direction (park, neutral, forward, reverse), range, and gear that is currently active.
30	Creeper	Illuminates when the creeper gears are engaged.
31	Machine Ground Speed	Indicates the actual machine speed.
32	Tachometer	Indicates the actual engine rpm.
33	Trailer	Illuminates when one or two trailers are connected and indicator lights are working.
34	Brake System Stop	Illuminates when a serious brake system malfunction occurs. Brake system does not perform as expected. Have John Deere dealer diagnose machine immediately.
