Headlights

RXA0126178-UN-29OCT12

RXA0153722-UN-30AUG16

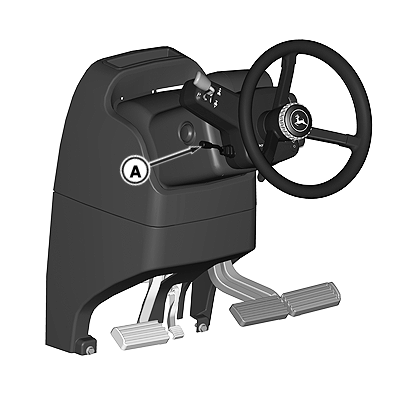

A - Horn / Headlight Control / Turn Signal Lever

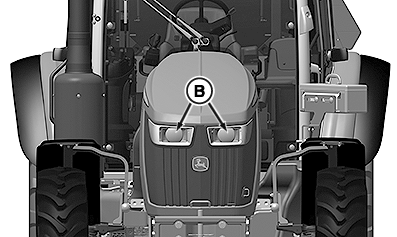

B - Headlights

CAUTION: Dim headlights to low beam for oncoming vehicles. Other machine operators can be blinded or confused, impairing their driving ability.

Push lever (A) forward to illuminate high beam headlights (B). High beam indicator illuminates on the primary display. Pull lever into center position to switch to low beam lights.

Operate flash to pass function by pulling lever rearward and releasing momentarily to activate high beams.

Lever Position	High Beam	Low Beam
Normal (Center)	Off	On
Forward	On	Off
Rear (Flash-to-Pass)	On	On
