Turn Signals

RXA0126178-UN-29OCT12

RXA0155614-UN-09NOV16

RXA0155545-UN-08NOV16

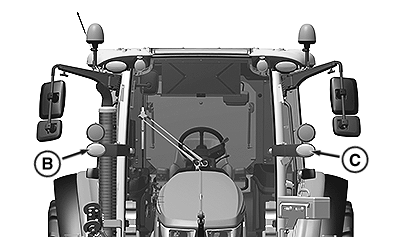

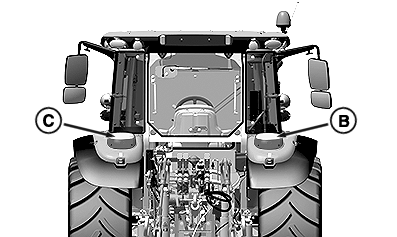

A - Horn / Headlight Control / Turn Signal Lever

B - Right Turn Signal

C - Left Turn Signal

CAUTION: Always use turn signals when making a turn on public roadways during day or night.

Push lever (A) up for right turn, or pull down for left turn. Audible chirping sound starts. Turn signal icon on primary display flashes to indicate turn signal lever and lights are on.

Return lever to center position after completing turn, chirping sound will stop when lever is returned to position.

Turn Signal Lever Position	Right Turn Signal (B)	Left Turn Signal (C)
Off	Off	Off
Up	On Flashing	On Steady
Down	On Steady	On Flashing
