Suspended Front Axle (SFA)

NOTE: SFA switches can be in any location on the B-post.

RXA0155615-UN-14NOV16

RXA0155616-UN-09DEC16

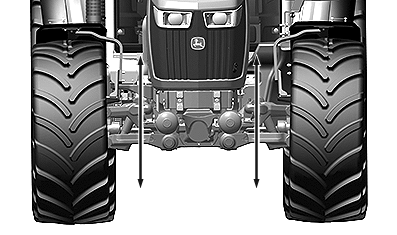

SFA Travel Directions

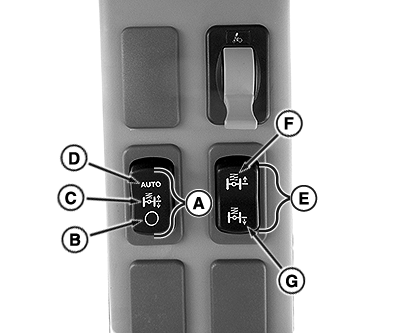

A - Mode Selection Switch

B - OFF

C - Manual

D - Auto

E - Manual Raise and Lower Switch

F - Raise

G - Lower

SFA is an electro-hydraulic operated front axle suspension that is self-leveling or manually positioned by the operator. The suspension tries’s to maintain the position selected by the operator during operation on the road or in the field. The independent suspension reduces body "roll" while operating on uneven surfaces.

IMPORTANT: Check for adequate clearance with SFA when attaching front mounted implement.

The mode selection switch (A) controls the front axle suspension in Off, Manual, or Auto state. The mode selections operate as follows:

• Off (B): Suspension drains all hydraulic pressure allowing the machine to settle to the lowest position.
• Manual (C): Machine height is adjusted to the operator preference by using the raise and lower switch (E).
• Auto (D): Suspension keeps machine height at a constant centered position regardless of load or terrain.

The manual raise and lower switch (E) allows the operator to raise or lower the height of the front of the machine. Select raise (F) or lower (G) when the mode selection switch (A) is the manual (C) position.
