Differential Lock

RXA0153735-UN-06SEP16

RXA0153736-UN-06SEP16

RXA0153737-UN-06SEP16

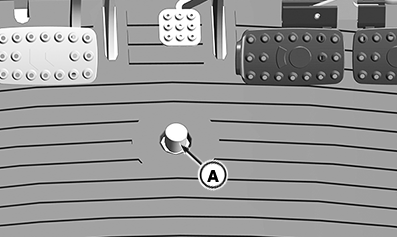

A - Differential Lock Floor Switch

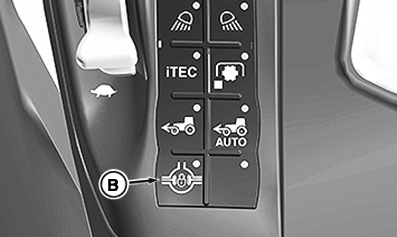

B - Differential Lock Button

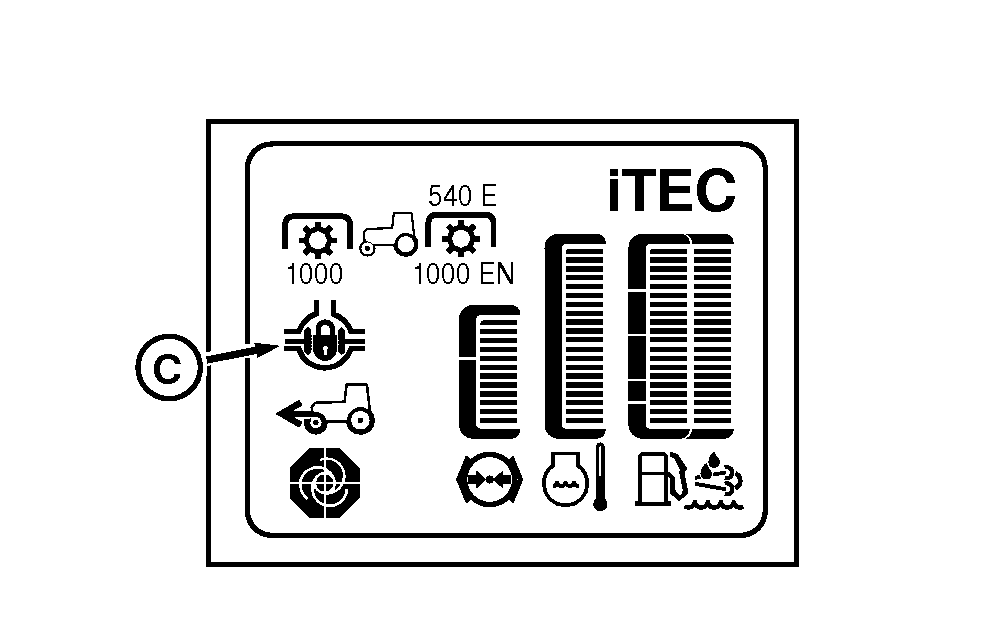

C - Differential Lock Indicator

IMPORTANT: Engage differential lock before entering situation where wheel slippage occurs or when all wheels appear to be turning at same speed. If engaged after wheels begin to spin, damage to differential could result.

Differential lock mechanically latches wheel axles together to provide best traction possible for slippery field conditions.

Depress either differential lock floor switch (A) or differential lock button (B) on the keypad. LED in the differential lock button and differential lock indicator (C) illuminates. Depress differential lock button on keypad again or depress one or both brake pedals to disengage differential lock.

If machine is equipped with a suspended front axle (SFA), the front axle differential lock will engage when the rear axle differential lock is engaged.
