Loader Lights

RXA0155550-UN-08NOV16

RXA0153725-UN-31AUG16

RXA0155543-UN-08NOV16

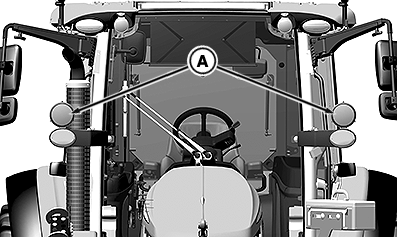

A - Loader Lights

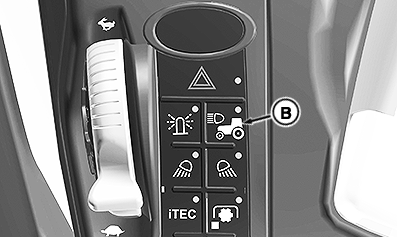

B - Loader Lights Button

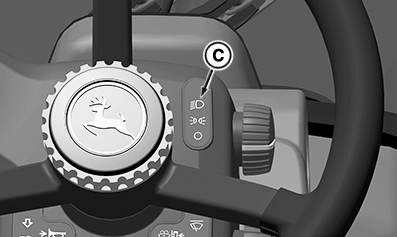

C - Road Position

CAUTION: Make sure that loader lights are adjusted properly to prevent blinding of other machine operators.

Loader lights (A) are used when headlight projection is blocked by the loader bucket or contents. Depressing the loader lights button (B) toggles between headlights and loader lights.

Select the best lighting option for your specific application. Lights must be in road position (C) for loader lights to illuminate.

Loader Lights Button	Light Switch	Loader Lights	Headlights
On	Road	On	Off
Off	Road	Off	On
