Rear Wiper and Washer

RXA0153609-UN-29AUG16

RXA0153610-UN-30AUG16

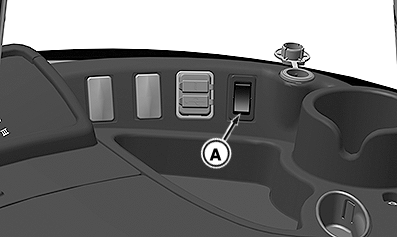

A - Rear Wiper / Washer Switch

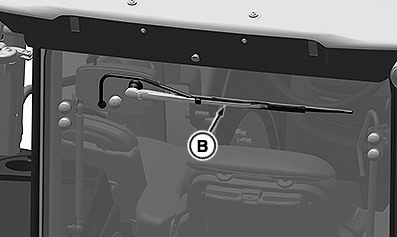

B - Rear Wiper
Rear wiper/washer switch (A) has three positions:
-
Top - washer and wiper on.
-
Center - wiper on.
-
Bottom - all off.
Place the switch in center position to operate the rear wiper
(B). Place in top position to operate the washer and wiper at the
same time.
|
|
MP60050,0000941-19-20161117
|
|
